M4 — Kubernetes Core

Core question: You have a Docker image in a registry. How do you run it reliably across many machines, keep it alive when it crashes, and reach it via a stable address — without babysitting it?

⏱️ Time: ~75 min padho + 40 min lab · 🎚️ Level: Intermediate · 📋 Pehle chahiye: M0, M3

Is module ke baad tum kar paoge: - Deployment, Service, aur readiness probe YAML likhna aur kubectl apply se cluster pe deploy karna - Self-healing demonstrate karna: kubectl delete pod ke baad automatic replacement dekhna - CrashLoopBackOff, Pending, aur ImagePullBackOff debug karna — kubectl describe se exact cause nikalna

---

MODULE MAP 00-INDEX · 01-M0-foundations · 02-M1-terraform · 03-M2-ansible · 04-M3-docker · 05-M4-kubernetes-core · 06-M5-sizing-and-cost · 07-M6-cicd · 08-M7-gitops · 09-connected-system · 10-M8-observability-sre · 11-M9-advanced-k8s-internals · 12-capstone-url-shortener · 13-capstone-microshop · 14-interview-bank · 15-roadmap · 16-reference-appendix

---

⚡ 90-second hook — pehle KARO, phir padho (the magic trick)

kubectl create deployment hook --image=nginx:1.27 --replicas=2
kubectl get pods                        # 2 pods Running — naam note karo
kubectl delete pod <koi-ek-pod-ka-naam> # ← MAAR DO ek pod ko
kubectl get pods                        # 😳 phir bhi 2 hain — naya khud aa gaya
kubectl delete deployment hook          # safai

Tumne ek pod ko maara aur Kubernetes ne bina puche, seconds me naya khada kar diya. Kisi ne script nahi likhi, koi alert nahi aaya, koi 2 a.m. wala phone nahi baja. Ye reconciliation loop hai — "desired 2, actual 1 → fix" — aur poora Kubernetes isi ek loop ka expansion hai. Ab padho ye jaadu kaise kaam karta hai. 👇

↩️ Recall gate — shuru karne se pehle

Pichhle modules se 3 sawaal. Pehle memory se jawab do, phir kholo. (Yeh retrieve karna hi lifetime yaad rakhta hai — dobara padhna nahi.)

1. (M3) Docker image mein :latest tag production mein kyun dangerous hai, aur uski jagah kya use karna chahiye?
2. (M1) Terraform plan command kya karta hai, aur apply se pehle kyun zaruri hai?
3. (M0) "Pets vs cattle" ka infrastructure mein kya matlab hai? Kubernetes pods kahan fit hote hain?

Jawab

1. :latest mutable hai — alag time pe pull karo to alag image mil sakti; rollback impossible. SHA digest pin karo — immutable, traceable.   2. plan = dry run — batata hai kya badlega bina kuch badlaye; unexpected changes pakdo apply se pehle.   3. Pets = unique hand-crafted servers (toot jaaye to rona). Cattle = interchangeable units (koi bhi maare, naya la do). Kubernetes pods = pure cattle — ek crash kare, K8s naya banata hai.

The 60-second version

Kubernetes (K8s — the 8 letters between K and s) is a cluster manager that keeps containers running across many machines. You write a YAML file that says "I want 3 copies of this container." Kubernetes reads it, creates those containers on worker nodes, and then watches 24/7. One crashes? It starts a new one automatically. You never typed "start container" — you declared desired state, and K8s drives current state toward it forever.

That one idea — declare desired state, let the system reconcile — is the entire mental model. Everything else is detail.

---

Why this exists / what it replaced

Before orchestrators, the typical approach was:

• SSH into a server, run docker run myapp.
• If it crashes, it stays dead until someone notices and restarts it manually.
• To run 10 copies, SSH into 10 servers and run 10 commands.
• Rolling update? Log into each server one by one.
• "The server that must never reboot" — a pet machine nobody dares touch because everything depends on it running.

This produced the pet server anti-pattern: a unique, hand-crafted machine with undocumented state accumulated over months. When it dies, the team scrambles.

K8s replaces this with cattle pods — disposable units. If a pod (container wrapper) dies, K8s immediately spins up a replacement. Servers are interchangeable workers, not irreplaceable pets.

What K8s adds over raw Docker:

What you get	Docker alone	Kubernetes
Self-healing (restart on crash)	No	Yes
Run across many machines	No	Yes
Rolling updates with zero downtime	Manual	Built-in
Horizontal scaling (more copies)	Manual	One command / auto
Stable network address for pods	No	Service object
Health-check gating (no traffic to broken pods)	No	Probes

---

The one big idea: reconciliation

This is Golden Thread 1 — the same idea runs through every tool in this handbook:

• Terraform: you declare infra, it drives reality toward it (see 02-M1-terraform).
• Ansible: you declare machine state, it converges there (see 03-M2-ansible).
• Argo CD: you declare cluster state in Git, it applies it (see 08-M7-gitops).
• Kubernetes: you declare pod count and configuration, it maintains them 24/7 without you.

See 09-connected-system for a full map of how reconciliation threads every tool together.

🔁 🎬 Interactive: Pod maaro — wapas aa jaataReconciliation loop ko live dekho — desired vs actual, pod marta, khud wapas aata. ▶ Kholo

🔮 Predict pehle (socho, phir aage padho): Ek Deployment me replicas: 3 hai. Tum ek pod ko kubectl delete kar do — ab kitne pods honge, aur kaun banata hai unhe?

How it works

K8s runs a control loop — a tight loop that never stops:

loop:
  desired = read from etcd ("replicas: 3")
  current = count running pods
  if current < desired:  start new pods
  if current > desired:  delete excess pods
  sleep(a few seconds)
  repeat forever

🇮🇳 Hinglish intuition: Ye ek chowkidar hai jo 24/7 ginta rehta — "teen chahiye the, do hain, chalo ek aur banao." Raat 2 baje bhi, Sunday ko bhi, woh nahi ruka. Docker mein yeh chowkidar tha hi nahi — container chala ke bhool jaata.

Desired state = what you wrote in YAML (replicas: 3). Current state = what is actually running right now. Reconciliation = the loop that closes the gap between them.

The critical consequence: you do not tell K8s how to fix things. You tell it what you want. It figures out the how. This is declarative, not imperative — same philosophy as Terraform.

---

The object chain

🧬 🗺️ Pod Anatomy — kaun pod banata · andar · bahar · nodeClick-to-explore map: Deployment/StatefulSet/DaemonSet/Job (pod banate) · init/main/sidecar (andar) · Service/ConfigMap/NetworkPolicy (bahar rules) · kubelet/kube-proxy/CNI (node). Is section ko padhne se pehle ye naksha khol lo. ▶ Kholo

Every workload in K8s follows this four-layer chain:

flowchart TD
  DEP["Deployment<br/>(replicas: 3)"]:::ctl
  RS["ReplicaSet<br/>(desired = actual?)"]:::ctl
  P1["Pod 1"]:::run
  P2["Pod 2"]:::run
  P3["Pod 3<br/>(crashed)"]:::run
  PNEW["New Pod 3<br/>(auto-replaced)"]:::run

  DEP -->|"creates / owns"| RS
  RS -->|"creates"| P1
  RS -->|"creates"| P2
  RS -->|"creates"| P3
  RS -. "detects crash, starts replacement" .-> PNEW

  classDef ci fill:#e3f2fd,stroke:#1976d2,color:#0d47a1;
  classDef store fill:#fff3e0,stroke:#ef6c00,color:#e65100;
  classDef run fill:#e0f2f1,stroke:#00897b,color:#004d40;
  classDef ctl fill:#ede7f6,stroke:#5e35b1,color:#311b92;
  classDef shared fill:#fff9c4,stroke:#f9a825,color:#4a3800;

Deployment → ReplicaSet → Pods: the ReplicaSet reconciles desired count 24/7 — a crashed pod is automatically replaced with no human intervention.

Text version (ASCII)

┌─────────────────────────────────────────────────────────┐
│  DEPLOYMENT 👔                                          │
│  "Keep 3 replicas of this pod spec always running"      │
│  Owns rolling updates, rollbacks, desired replica count │
│         │                                               │
│         ▼                                               │
│  REPLICA SET                                            │
│  "Count pods, start/stop to hit the number"             │
│  One ReplicaSet per version (rolling update = new RS)   │
│         │                                               │
│         ▼                                               │
│  POD 🍱  (smallest deployable unit)                     │
│  Shared network namespace + shared storage volumes      │
│  One or more containers that must live together         │
│  IP address — changes every time pod is replaced        │
│         │                                               │
│         ▼                                               │
│  CONTAINER 🍛                                           │
│  Your actual application process                        │
└─────────────────────────────────────────────────────────┘

🇮🇳 Hinglish intuition: Pod = tiffin dabba 🍱. Tiffin ke andar dish (container) hoti. Tiffin ka address (IP) bahar likha hota — par jab naya tiffin aata to address badal jaata. Isliye upar Service chahiye (agle section mein).

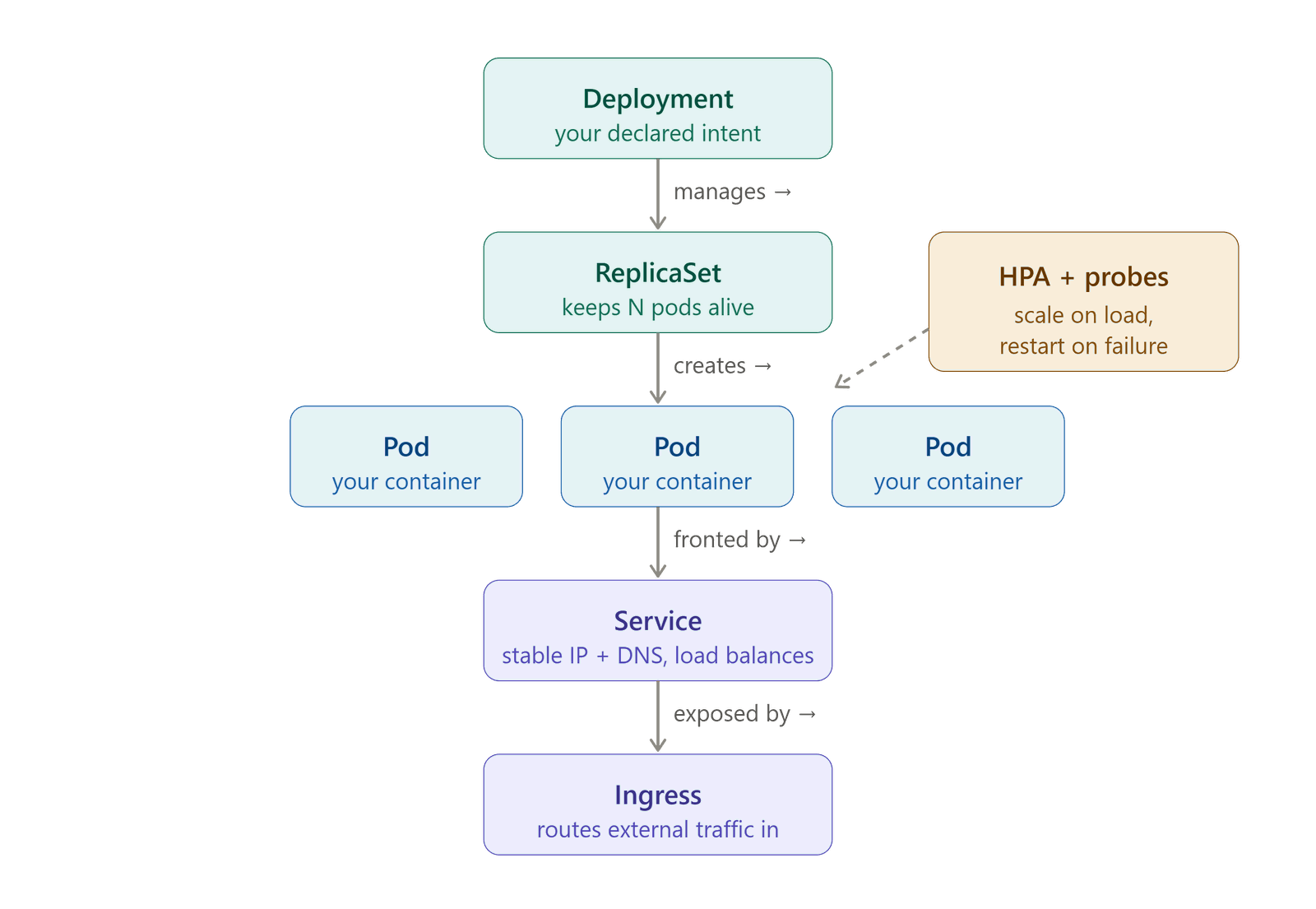

Figure: the controller chain rendered. Each controller watches its slice of desired state and creates/heals the layer below — the reconciliation loop in action.

What each layer's job is

Deployment — the object you create and interact with. You scale it, roll it back, update its image. You never touch ReplicaSets or Pods directly in production.

ReplicaSet — created automatically by the Deployment. Its sole job is counting: "there should be N pods; if there are fewer, create; if more, delete." When you do a rolling update, the Deployment creates a new ReplicaSet with the new image while slowly scaling down the old one. The deep mechanics of this are covered in 11-M9-advanced-k8s-internals.

Pod — the fundamental unit K8s schedules, starts, and stops. Key properties: - Contains one or more containers that share a network namespace (same IP, same localhost, same ports). - Contains one or more containers that share mounted storage volumes. - Has an IP address — but it changes every time the pod is replaced. - Never create a bare pod without a Deployment. A bare pod that crashes does not get recreated — there is no desired state watching it.

Container — the actual Docker (or OCI) container pulled from your registry.

Two small-but-important Pod fields: imagePullPolicy & restartPolicy

Beginners skip these two Pod-spec fields; both bite in production.

imagePullPolicy — decides when the kubelet re-pulls an image onto a node:

Value	Behaviour	Default when
IfNotPresent	If the tag is already cached on the node, do not pull again	tag is not :latest (e.g. :abc1234)
Always	Check the registry on every pod start	tag is :latest (or set explicitly)
Never	Never pull; use only a locally-present image	air-gapped / testing

⚠️ The trap that ties back to M3. If you use a mutable tag (:latest, :prod) with imagePullPolicy: IfNotPresent, a node that already cached that tag keeps running the old image — you "deployed" but the pod never changed. This is exactly why M3 insists on immutable SHA/version tags: a new version = a new name, so the cache is never stale and IfNotPresent is both safe and fast.

restartPolicy — what K8s does when a container exits:

Value	Behaviour	Who uses it
Always	Restart on any exit (success or crash)	Deployment / StatefulSet (default) — long-running services
OnFailure	Restart only on non-zero exit	Job / CronJob — retry work, but stop on success
Never	Never restart	one-shot tasks you inspect yourself

🇮🇳 Hinglish intuition: Deployment = "hamesha chalti rehni chahiye" (Always). Job = "kaam khatam to ruk jao" (OnFailure/Never). Isliye ek crashed web pod wapas aata hai, par ek complete-ho-chuka Job ka pod nahi. Yahi wajah hai CrashLoopBackOff sirf Always/OnFailure pods pe dikhta hai.

The sidecar pattern

A pod with two containers: one main application, one helper that must share the same network or filesystem.

┌─────────────────────────────────┐
│  POD                            │
│  ┌───────────┐ ┌─────────────┐  │
│  │ Main app  │ │  Sidecar    │  │
│  │ :8080     │ │  (logs/     │  │
│  │           │ │   proxy/    │  │
│  │           │ │   metrics)  │  │
│  └───────────┘ └─────────────┘  │
│  shared network (localhost)     │
│  shared volume (log files)      │
└─────────────────────────────────┘

🇮🇳 Hinglish intuition: Motorcycle aur sidecar — dono ek saath chalte, ek steering wheel se. Sidecar ko apna engine nahi chahiye; main ke saath ride karta.

Common sidecar uses: log shipping (Fluentd), service mesh proxy (Envoy), metrics exporter. The sidecar shares the pod's network so it can scrape localhost:8080 without any extra routing.

---

Services, labels and selectors

Init containers — run before the main app

An initContainer runs to completion before the pod's main container(s) start — same pod, but strictly sequential: init runs → exits 0 → main starts. Common uses:

• Wait for a dependency — block until the database (or in MicroShop, catalog-api) is reachable, so the app doesn't crash-loop on a missing backend.
• One-time setup — run a DB migration, fetch config/secrets, or fix file permissions before the app boots.

If an initContainer fails, K8s restarts it and the main app never starts until it succeeds — you'll see the pod stuck in status Init:0/1. That status is your signal to check the initContainer's logs.

🇮🇳 Hinglish intuition: initContainer = "dukaan kholने se pehle safai/setup" — jab tak setup pura nahi, main app chalu nahi hoti. Sidecar (upar wala) iska ulta hai: woh main app ke saath-saath chalta rehta hai; initContainer main se pehle chal ke khatam ho jaata hai.

The pod IP problem

Pods come and go. Every time K8s replaces a pod — crash, rolling update, node failure — the new pod gets a new IP. You cannot hardcode pod IPs in your application.

Service solves this: a stable virtual IP address (ClusterIP) and DNS name that never change, in front of a set of pods. Traffic arrives at the Service; the Service routes it to a healthy pod.

┌──────────────────────────────────────────────────────────┐
│                                                          │
│   CLIENT                                                 │
│     │                                                    │
│     ▼                                                    │
│  SERVICE (stable ClusterIP: 10.96.14.5, DNS: my-svc)    │
│     │           │           │                            │
│     ▼           ▼           ▼                            │
│  Pod A       Pod B       Pod C                           │
│ (10.0.1.2) (10.0.1.7) (10.0.2.3)                        │
│  [healthy]  [healthy]  [healthy]                         │
│                                                          │
│  Pod D — readiness probe failing → NOT in Service        │
│                                                          │
└──────────────────────────────────────────────────────────┘

🇮🇳 Hinglish intuition: Fixed phone number — delivery boys (pods) badalte rehte, number (Service IP) same rehta. Tu number pe call karta, jo bhi available delivery boy ho, woh aata.

The Service watches for pod readiness and only routes to pods that are ready. EndpointSlice is the internal mechanism that tracks the list of ready pod IPs — internals are covered in 11-M9-advanced-k8s-internals.

Service types — what you need now

ClusterIP (default): Service is reachable only inside the cluster. Used for internal service-to-service communication. Example: your API pod talks to your database pod via a ClusterIP Service.

NodePort: Opens a port (30000–32767) on every node's external IP. External traffic can reach <node-IP>:<NodePort>. Used for self-managed clusters where you don't have a cloud load balancer. This is what you will use in the hands-on lab.

LoadBalancer and Ingress (HTTP routing, TLS termination, path-based routing) are covered in 11-M9-advanced-k8s-internals and 12-capstone-url-shortener.

The four port fields — the #1 Service confusion

A Pod and its Service have up to four "port" fields, and beginners mix them up constantly. Here is the chain, from the outside world down to your app:

   (external)          (Service)          (Service)          (Pod / container)
   nodePort    ──▶       port      ──▶     targetPort   ──▶    containerPort
   30080                80                8000                8000
   "bahar ka gate"      "reception          "kis pod-port       "app actually
   (NodePort only)       counter"            pe bhejo"            listens here"

Field	Lives on	What it means	Example
containerPort	Pod (container)	The port your app actually listens on inside the container	8000
targetPort	Service	Which pod port the Service forwards to — must match the port the app actually listens on inside the container (containerPort is documentation-only and does not bind or open a port)	8000
port	Service	The port the Service itself exposes; how other pods call it (my-svc:80)	80
nodePort	Service (NodePort type only)	The external port opened on every node (30000–32767)	30080

Traffic flow (NodePort): client → <node-IP>:30080 (nodePort) → Service:80 (port) → pod:8000 (targetPort = containerPort).

🇮🇳 Hinglish intuition: Ek building socho — nodePort = street ka gate number, port = reception counter, targetPort/containerPort = asli kamre ka number jahan app baitha hai. Bahar se andar: gate → reception → kamra.

⚠️ Beginner trap: targetPort ≠ containerPort is the #1 cause of "the Service exists but returns nothing / connection refused" — the Service is forwarding to a port no container is listening on. Ye check karo pehle.

Labels and selectors — two distinct uses

A label is a key-value pair attached to any K8s object: app: myapp, env: prod, disktype: ssd.

A selector is a filter that says "give me objects whose labels match this."

Labels have two completely different uses in K8s. Conflating them is a common source of bugs.

Use	Who uses the selector	Whose label is read	What it decides
Traffic routing	Service	Pod's label	Which pods receive traffic
Pod placement	Pod spec	Node's label	Which node the pod runs on

# USE 1: Service → Pod (traffic routing)
# Pod carries the label:
metadata:
  labels:
    app: myapp          # <── label on the POD

# Service selects by that label:
spec:
  selector:
    app: myapp          # <── "send traffic to pods with this label"

---

# USE 2: Pod → Node (placement / scheduling)
# Node carries the label:
# (set by admin: kubectl label node worker-1 disktype=ssd)

# Pod requests that node label:
spec:
  nodeSelector:
    disktype: ssd       # <── "schedule me onto nodes with this label"

🇮🇳 Hinglish intuition: Service label use karti — "traffic kahan jaaye?" Pod nodeSelector use karta — "main kahan baithunga?" Same sticker (label), bilkul alag sawaal.

If your Service is not sending traffic to your pods, 90% of the time the label in the Service selector does not match the label on the pod. Check both.

---

Labels, selectors & the RC → ReplicaSet story

What's above introduced labels as traffic-routing tags and node-placement filters. This section deepens the mechanics: the annotation distinction, both selector syntaxes, the RC→RS history, and the production gotchas that catch everyone.

The warehouse-tag analogy

Imagine a fulfilment warehouse:

Real world	K8s equivalent
Box on the floor	Pod — a running workload unit
Sticky tag on the box (app=web, env=prod)	Label — arbitrary key-value metadata attached to any K8s object
Magnetic wand that picks up tagged boxes	Selector — a filter that matches objects by their labels
Shipping counter ("give me any box tagged app=web")	Service — routes traffic to pods whose labels match its selector
Supervisor ("always keep 3 boxes tagged app=web on this floor")	ReplicaSet — reconciles the count of pods matching its selector
Post-it on the inside of the box lid (barcode, supplier notes)	Annotation — non-selectable metadata for tooling and humans

🇮🇳 Hinglish intuition: Label = dabbe pe chipka sticker. Service = "jo bhi box app=web sticker wala hai, usse utha ke shipping counter pe de." ReplicaSet = supervisor jo ginta rehta — "teen chahiye, do hain, ek aur banao." Annotation = sticker ke peeche chhupa internal note — koyi magnet nahi utha sakta, sirf andar wale logte.

Labels vs Annotations

Property	Label	Annotation
Selectable by controllers	Yes — Services, ReplicaSets, NetworkPolicies, kubectl -l all filter by label	No — never used in a selector: block
Value length	63 characters max	Unlimited (can hold JSON blobs)
Used by	kube-scheduler, Services, ReplicaSets, NetworkPolicies, HPA	kubectl describe, Helm, cert-manager, Argo CD, Prometheus scrape config
Typical examples	app: web, env: prod, version: v2	kubernetes.io/change-cause: "deploy #142", prometheus.io/scrape: "true"

Rule: if a controller or network rule needs to find the object → label. If it is metadata for humans or non-K8s tooling → annotation.

Equality-based vs set-based selectors

Syntax	Who uses it	YAML form	kubectl -l form
Equality-based (=, !=)	Service, ReplicationController (legacy)	matchLabels: {app: web}	kubectl get pods -l app=web
Set-based (in, notin, exists)	ReplicaSet, Deployment, Job, DaemonSet	matchExpressions: [{key: env, operator: In, values: [prod,staging]}]	kubectl get pods -l 'env in (prod,staging)'

# Select pods where app=web AND env=prod (equality)
kubectl get pods -l app=web,env=prod

# Set-based: env is staging or prod
kubectl get pods -l 'env in (staging,prod)'

# Exclude canary pods
kubectl get pods -l 'track notin (canary)'

# Add a label to a live pod
kubectl label pod <pod-name> version=v2

# Show all labels on every pod
kubectl get pods --show-labels

# Inspect the full object chain at once
kubectl get deploy,rs,pods --show-labels

Labels as the glue — the selector graph

flowchart TD
  DEP["Deployment<br/>selector: app=web"]:::ctl
  RS["ReplicaSet<br/>selector: app=web"]:::ctl
  P1["Pod A<br/>app=web"]:::run
  P2["Pod B<br/>app=web"]:::run
  P3["Pod C<br/>app=web"]:::run
  SVC["Service<br/>selector: app=web"]:::net
  NP["NetworkPolicy<br/>podSelector: app=web"]:::net

  DEP -->|"manages"| RS
  RS -->|"creates"| P1
  RS -->|"creates"| P2
  RS -->|"creates"| P3
  SVC -. "routes traffic to" .-> P1
  SVC -. "routes traffic to" .-> P2
  SVC -. "routes traffic to" .-> P3
  NP -. "applies rules to" .-> P1
  NP -. "applies rules to" .-> P2
  NP -. "applies rules to" .-> P3

  classDef ctl fill:#ede7f6,stroke:#5e35b1,color:#311b92;
  classDef run fill:#e0f2f1,stroke:#00897b,color:#004d40;
  classDef net fill:#ede7f6,stroke:#5e35b1,color:#311b92;

The label app=web is the single wire connecting Deployment, ReplicaSet, Service, and NetworkPolicy to the same pods — change a pod's label and it simultaneously falls out of all four.

ReplicationController vs ReplicaSet — the full story

ReplicationController (RC) was K8s's original self-healing primitive (v1.0). It worked, but its selector was equality-only: app=web. You could not say "pods in the set {web, api}" or "all pods except canary."

Property	ReplicationController (RC)	ReplicaSet (RS)
Introduced	K8s 1.0	K8s 1.2 (GA in 1.9)
Selector support	Equality-based only (=, !=)	Set-based (in, notin, exists) + equality
Used directly today	No — legacy, do not create	Only via Deployment (Deployment creates and owns it)
Rolling update	Manual kubectl rolling-update (removed in K8s 1.11)	Managed automatically by Deployment controller
Relationship to Deployment	Standalone — no Deployment layer	Created and owned by a Deployment

Why RS replaced RC: A Deployment rolling-update works by creating two ReplicaSets — one for the old image (scaling to 0) and one for the new image (scaling to the desired count). To distinguish "pods from RS-v1" from "pods from RS-v2" even when both carry app=web, K8s injects a pod-template-hash label onto every pod a ReplicaSet creates, and the RS's selector includes that hash. Set-based selectors made this clean; RC's equality-only selectors could not support it.

The chain you work with today:

Deployment  (you interact with this — scale, rollout, rollback)
  └── ReplicaSet v2  (current version — runs at full desired count)
        ├── Pod  (app=web, pod-template-hash=abc123)
        ├── Pod  (app=web, pod-template-hash=abc123)
        └── Pod  (app=web, pod-template-hash=abc123)
  └── ReplicaSet v1  (previous version — scaled to 0 after rollout, kept for rollback)

Self-healing: what the ReplicaSet is actually doing

Self-healing is the RS running a perpetual reconciliation loop:

loop (every few seconds):
  desired = RS.spec.replicas
  actual  = COUNT(pods WHERE labels MATCH RS.selector AND status != Terminating)
  if actual < desired: create (desired - actual) new pods
  if actual > desired: delete (actual - desired) pods (newest first)

Key implication: the RS counts all pods matching its selector, not just pods it created. If you manually create a bare pod and accidentally label it app=web while an RS with that selector is running, the RS may delete one of its own pods (actual now > desired because the bare pod joined the count).

The #1 gotcha: selector mismatch → empty EndpointSlice → dead Service traffic

Scenario: your Service has selector: app: web but your pods carry app: Web (capital W). Both apply without error. Then:

kubectl get endpoints <svc-name>   # → <none>
kubectl get endpointslices         # → 0 addresses

Every request to the Service returns connection refused or 503. K8s does not validate that a Service selector matches any existing pod — it silently creates an empty EndpointSlice.

Debug reflex:

kubectl get pods --show-labels            # exact labels on running pods
kubectl get endpoints <svc-name>          # empty = selector mismatch
kubectl describe svc <svc-name>           # compare Selector: field vs pod labels

Two more traps in the same family:

1. Deployment/RS selector is immutable after creation. kubectl patch deployment ... -p '{"spec":{"selector":...}}' errors out — K8s refuses to change it. To change the selector, delete and recreate the Deployment. (Demonstrated in Step 8 of the hands-on lab above.)

2. Deleting a controller-owned pod just brings it back. The RS replaces it immediately to restore the count. To reduce the number of running pods, kubectl scale deployment <name> --replicas=N — never delete individual pods to shrink a fleet.

Cross-link: selector mismatch → empty EndpointSlice → 502/503 at the Ingress. The EndpointSlice internals and the networking debug path are in M9 networking internals.

---

Probes: readiness vs liveness

A container can be running (the process started) without being ready (the application is actually serving requests). K8s distinguishes these with probes.

Running vs Ready

Running means the container process is alive. Ready means the pod has passed its readiness probe and is eligible to receive traffic.

READY 0/1 in kubectl get pods output means: 1 container in the pod, 0 are ready. The pod is running but not receiving traffic.

🇮🇳 Hinglish intuition: Running = dukaan ki batti jali. Ready = galla set hai, customer le sakte ho. Dono alag hain.

Readiness probe

Question it answers: "Is this pod ready to serve traffic right now?"

What happens on failure: The pod is removed from the Service's endpoint list. Traffic stops going to it. The pod is NOT killed or restarted. When the probe passes again, the pod is re-added to the Service.

When you need it: App takes 20 seconds to start, connects to a database, pre-warms a cache. Without a readiness probe, K8s would send traffic to the pod immediately on start — before the app is ready.

Liveness probe

Question it answers: "Is this pod still alive and functional? Or is it stuck / deadlocked?"

What happens on failure: The pod is killed and restarted.

When you need it: App enters an infinite loop, deadlocks, or hangs with the process still running. Without a liveness probe, K8s would leave it running forever even though it is not doing any work.

	Readiness probe	Liveness probe
Question	Ready for traffic?	Still alive and functional?
Failure action	Remove from Service (no kill)	Kill and restart pod
Protects against	Sending traffic too early	Stuck / deadlocked processes
Pod killed?	No	Yes
Emoji	🚦	💓

stateDiagram-v2
    direction TB

    Running : Pod Running

    state diverge <<fork>>
    Running --> diverge : probe fails

    R_Stay : Stays Running but NotReady
    R_Out : Removed from EndpointSlice
    R_Stop : Traffic stops
    R_In : Probe passes -- re-added to Service

    diverge --> R_Stay : readiness probe
    R_Stay --> R_Out
    R_Out --> R_Stop
    R_Stop --> R_In
    R_In --> Running : container never killed

    L_Kill : Container KILLED
    L_Restart : Kubelet restarts container

    diverge --> L_Kill : liveness probe
    L_Kill --> L_Restart
    L_Restart --> Running

readiness = traffic gate (pod stays alive, just hidden from Service); liveness = restart trigger (container killed and re-born).

Both probes use the same mechanism: HTTP GET to a health endpoint, TCP socket check, or exec a command inside the container. The difference is only in what K8s does when the probe fails.

Startup probe and the liveness-probe footgun (setting initialDelaySeconds too short causing restart loops) are covered in 11-M9-advanced-k8s-internals.

Debug reflex: Pod Running but users see errors and READY 0/1: 1. Check kubectl describe pod <name> for readiness probe failures. 2. Check that the Service selector label matches the pod label.

---

Nodes, taints and scheduling

Master vs worker

A K8s cluster has two kinds of machines:

flowchart TD
  KUBECTL["kubectl"]:::ci
  API["api-server"]:::ctl
  ETCD[("etcd<br/>(cluster state)")]:::store
  SCHED["scheduler"]:::ctl
  CM["controller-manager"]:::ctl
  KL["kubelet<br/>(worker node)"]:::run
  KP["kube-proxy<br/>(worker node)"]:::run
  CR["containerd<br/>(worker node)"]:::run
  POD["Pod<br/>(your app)"]:::run

  KUBECTL -->|"REST"| API
  API -->|"read / write"| ETCD
  SCHED -->|"watch + bind"| API
  CM -->|"watch + reconcile"| API
  KL -->|"heartbeat / status"| API
  KP -->|"watch Services"| API
  KL --> CR
  CR --> POD

  classDef ci fill:#e3f2fd,stroke:#1976d2,color:#0d47a1;
  classDef store fill:#fff3e0,stroke:#ef6c00,color:#e65100;
  classDef run fill:#e0f2f1,stroke:#00897b,color:#004d40;
  classDef ctl fill:#ede7f6,stroke:#5e35b1,color:#311b92;
  classDef shared fill:#fff9c4,stroke:#f9a825,color:#4a3800;

Kubernetes cluster architecture: kubectl talks to the api-server; control-plane components (scheduler, controller-manager) watch and write state via the api-server; kubelets on worker nodes register status and drive containerd to run pods.

Text version (ASCII)

┌─────────────────────────────────────────────────────────────────┐
│  CLUSTER                                                        │
│                                                                 │
│  ┌──────────────────────────────┐                               │
│  │  MASTER / CONTROL PLANE 🧠   │   <── cluster's brain        │
│  │  API server, scheduler,      │   <── you never run app      │
│  │  controller-manager, etcd    │       pods here              │
│  └──────────────────────────────┘                               │
│                                                                 │
│  ┌──────────────┐ ┌──────────────┐ ┌──────────────┐            │
│  │  WORKER 💪   │ │  WORKER 💪   │ │  WORKER 💪   │            │
│  │  Your pods   │ │  Your pods   │ │  Your pods   │            │
│  │  run here    │ │  run here    │ │  run here    │            │
│  └──────────────┘ └──────────────┘ └──────────────┘            │
└─────────────────────────────────────────────────────────────────┘

Master / Control Plane	Worker
Cluster brain — makes all scheduling decisions	Runs your application pods
Runs API server, scheduler, controller-manager, etcd	Runs kubelet (talks to master), containerd (runs containers)
You interact with it via kubectl	You never SSH here in production
Cannot tolerate disruption	Can come and go (cattle)

Taint and toleration

The master node carries a taint by default:

node-role.kubernetes.io/control-plane:NoSchedule

A taint is a repellent on a node. NoSchedule means: "do not schedule any pod here unless that pod explicitly tolerates this taint."

🇮🇳 Hinglish intuition: Taint = "No Entry" board 🚷. Sab pods baahar raho. Toleration = VIP pass — "main allowed hoon". Master pe "No Entry" board kyun? Kyunki agar teri app pods master pe chalne lage aur woh overloaded ho gaya, poora cluster ka brain down. Control plane crash = cluster mute.

A system pod (like CoreDNS) that needs to run on the master carries a matching toleration. Your application pods do not carry that toleration, so the scheduler never places them on the master — by design.

Pods per node — what limits it

A node can run a maximum of approximately 110 pods (hard cap in default K8s). But the limit that bites in practice is usually reached before that:

1. CPU: no more schedulable CPU left on the node.
2. RAM: no more memory left.
3. IP pool: each pod needs an IP from the node's CIDR block. When the pool is exhausted, no more pods, even if CPU and RAM are free. This surprises most beginners.
4. ~110 pod hard cap: relevant on resource-rich nodes running many low-request pods — you can exhaust the 110-pod count before running out of CPU or RAM. (The limit is configurable via the kubelet --max-pods flag; 110 is the default.)

Debug reflex: pod stuck in Pending with CPU and RAM appearing free? Run kubectl describe pod <name> and read the Events section. The scheduler writes the exact reason there — IP exhaustion, affinity mismatch, taint rejection.

Allocatable vs Capacity — why "free RAM" lies

A node's advertised size is not what you can use. The kubelet reserves resources for itself and the OS before offering anything to pods:

Capacity            = the hardware       e.g. 4 vCPU / 16 GiB
  − kube-reserved     kubelet, container runtime
  − system-reserved   sshd, systemd, kernel
  − eviction-hard     the buffer kubelet keeps so it can evict BEFORE the node dies
─────────────────────────────────────────────────────────────────────────
= Allocatable         what the scheduler is actually allowed to hand out
                                          e.g. ~3.9 vCPU / ~14.5 GiB

flowchart TD
    CAP["Node Capacity<br/>16 GiB RAM (hardware total)"]:::cap
    KR["- kube-reserved  ~0.25 GiB<br/>kubelet + container runtime"]:::reserved
    SR["- system-reserved  ~0.25 GiB<br/>sshd, systemd, kernel"]:::reserved
    EV["- eviction-hard buffer  ~100 MiB<br/>kubelet safe-evict zone before OOM"]:::evict
    ALLOC["= Allocatable  ~14.5 GiB<br/>only this is visible to the scheduler"]:::alloc

    CAP --> KR --> SR --> EV --> ALLOC

    classDef cap fill:#fff3e0,stroke:#ef6c00,color:#e65100;
    classDef reserved fill:#ffebee,stroke:#c62828,color:#b71c1c;
    classDef evict fill:#fce4ec,stroke:#880e4f,color:#880e4f;
    classDef alloc fill:#e8f5e9,stroke:#2e7d32,color:#1b5e20;

16 GiB machine, ~14.5 GiB actually available to pods — free -h on the node lies, always check kubectl describe node Allocatable.

The scheduler only ever looks at Allocatable. This is why a "16 GiB node" refuses a pod requesting 15.5 GiB, and why free -h on the node is the wrong tool for this question.

kubectl describe node <node> | grep -A8 "Allocatable"

# Allocatable vs what is already spoken for:
kubectl describe node <node> | grep -A6 "Allocated resources"
#   → shows Requests (booked) and Limits (ceiling) per resource

Allocated ≠ used

Allocated resources counts requests (bookings), not live usage. A node can show "CPU Requests: 95%" and sit at 10% real CPU — because everyone over-requested. Scheduling fails on the 95%; kubectl top node shows the 10%. Both numbers are true, and they answer different questions: requests decide placement, usage decides performance.

How the scheduler actually picks a node — Filter → Score

Every Pending pod goes through two phases. Knowing the split tells you which phase rejected you, and therefore what to fix:

All nodes  ──▶  ① FILTER (predicates)  ──▶  feasible nodes  ──▶  ② SCORE  ──▶  winner
                "CAN this pod run here?"                          "WHICH is best?"
                hard pass/fail                                    ranking 0–10

① Filter — hard constraints. Fail any one and the node is out:

Check	Rejection message you'll see
Enough Allocatable for the pod's requests?	Insufficient cpu / Insufficient memory
Node's taints tolerated?	node(s) had untolerated taint {...}
nodeSelector / required nodeAffinity match?	node(s) didn't match Pod's node affinity/selector
Its PV reachable from this node (zone)?	node(s) had volume node affinity conflict
Ports free, pod count < --max-pods, node Ready?	node(s) didn't have free ports / too many pods

If zero nodes survive Filter → Pending forever, and the Events line names the failing check. Read it literally — each message maps to a different fix, and they can appear together (0/5 nodes: 2 had untolerated taint, 3 Insufficient memory).

② Score — soft preferences. Only the survivors compete:

• LeastRequestedPriority — prefers the emptier node (spreads load)
• PodTopologySpread / podAntiAffinity — pushes replicas onto different nodes/zones (this is why your 3 replicas land on 3 nodes without you asking)
• preferred nodeAffinity weights, image-locality (node already has the image)

Highest total score wins; ties break randomly.

flowchart TD
    POD["New Pod<br/>(nodeName empty)"]:::act

    subgraph FILTER["① FILTER — hard constraints (fail any = node eliminated)"]
        PRED["CPU/memory fit · taint toleration<br/>nodeAffinity · PV zone · ports free"]:::filter
    end

    ELIM["Node eliminated<br/>(Pending forever if 0 survive)"]:::bad

    subgraph SCORE["② SCORE — soft preferences (survivors ranked 0–10)"]
        RANK["LeastRequested · TopologySpread<br/>ImageLocality · preferred affinity"]:::score
    end

    WIN["Highest score wins<br/>nodeName patched on pod"]:::good

    POD --> PRED
    PRED -->|"any check fails"| ELIM
    PRED -->|"all checks pass"| RANK
    RANK --> WIN

    classDef act fill:#e3f2fd,stroke:#1976d2,color:#0d47a1;
    classDef filter fill:#ede7f6,stroke:#5e35b1,color:#311b92;
    classDef bad fill:#ffebee,stroke:#c62828,color:#b71c1c;
    classDef score fill:#e0f2f1,stroke:#00897b,color:#004d40;
    classDef good fill:#e8f5e9,stroke:#2e7d32,color:#1b5e20;

Pending/Unschedulable = Filter funnel mein gira — pod Events batata hai kaunsa predicate fail hua, Score se koi lena dena nahi.

🇮🇳 Hinglish intuition: Filter = eligibility (degree hai? experience hai? — nahi to bahar). Score = interview ranking (jo bache, unme se best kaun). Pending ka matlab hai tum Filter mein hi bahar ho gaye — Score tak pahunche hi nahi. Isliye "score improve karna" bekaar hai; Filter ka jo check fail hua wahi theek karo.

⭐ Senior reflex: Pending dikhe → kubectl describe pod → Events → exact rejection string padho. Insufficient memory = capacity ka masla (requests kam karo ya node lao). untolerated taint = permission ka masla (toleration do). volume node affinity conflict = zone ka masla (us AZ mein node chahiye — ye Kubernetes se nahi, Terraform se fix hoga). Teeno "Pending" dikhte hain, teeno ka ilaaj alag hai.

---

Namespaces and kubectl basics

Namespaces

A namespace is a logical boundary inside one cluster. Objects in different namespaces are isolated from each other by default.

⚠️ Same word, two completely different meanings — don't confuse them. A Kubernetes namespace (here) is a virtual folder that groups objects inside a cluster (dev/staging/prod, or per-team). A Linux namespace (from M3 — Docker) is a low-level kernel feature that isolates a single container's view of processes/network/filesystem. Unrelated ideas, identical word. (Also in the 00a Pre-flight glossary.)

Default namespaces: - default — where your objects go if you do not specify a namespace. - kube-system — K8s internal components (CoreDNS, kube-proxy, metrics-server). Never delete objects here.

Namespaces are used to separate environments (dev/staging/prod) within a cluster, or to separate teams. RBAC (Role-Based Access Control — covered in 11-M9-advanced-k8s-internals) enforces who can touch which namespace.

kubectl — your remote control

kubectl is the CLI that talks to the K8s API server. Every command is a REST call under the hood.

Key commands — each explained in the Commands section below.

The -A flag trick: kubectl get pods shows pods in the default namespace only. Add -A (all namespaces) to see everything — including system pods in kube-system that are always running.

kubectl get pods         # only default namespace
kubectl get pods -A      # ALL namespaces — use this when something is "missing"

---

Stateful vs stateless: Deployment vs StatefulSet, and why the DB lives in RDS

Stateless pods (the normal case)

A web API pod holds no data. Every request is self-contained. If the pod dies, K8s starts a fresh one from the same image and nothing is lost — state never lived in the pod.

Use a Deployment for stateless pods: - Pods are interchangeable. - Any replica can handle any request. - Roll out, roll back, scale freely. - Golden Thread 2: state outside → compute disposable.

🇮🇳 Hinglish intuition: Cattle 🐄 — ek bimaar gaay aayi, naya la do. App pod = kiraye ka waiter (tu badal sakta, kuch nahi khota).

Stateful pods (the rare case)

A database pod holds data. If the pod dies and a new one starts, you need it to re-attach to the same disk. Pod identity matters.

Use a StatefulSet for this case: - Pods get stable, ordered names (mysql-0, mysql-1, not random hashes). - Each pod gets its own PersistentVolume (PV) — a disk that lives outside the pod. - Pod dies → new pod starts with the same name and mounts the same disk → data is intact.

🇮🇳 Hinglish intuition: Pod = almari (toot sakti). PV = bahar ka locker 🔒 (pod maari to locker bacha, naya pod same locker se jud gaya). PV = pod ke bahar ki disk; pod se zyada zindagi hai uski.

🔧 War story: postgres-0 pod ghanton tak Pending raha — CPU aur RAM dono free the. kubectl describe pod postgres-0 ne bataya: no persistent volumes available for this claim and no storage class is set. Default StorageClass install hi nahi thi; local-path provisioner add kiya toh pod 10 second mein Running. Poori kahani + lesson → Interview Bank.

The deep StatefulSet lifecycle (ordered start/stop, headless Services, PVC binding) is covered in 11-M9-advanced-k8s-internals.

Deployment vs StatefulSet — quick reference

	Deployment (stateless)	StatefulSet (stateful)
Pod identity	Random names, interchangeable	Stable ordered names (pod-0, pod-1)
Storage	None (or ephemeral)	PersistentVolume per pod (survives pod death)
Restart	Any node, fresh start	Same volume re-attached
Scaling	Scale freely, any order	Ordered startup/shutdown
Use case	Web API, worker, proxy	Database, message broker, distributed cache
K8s object	Deployment	StatefulSet + PersistentVolumeClaim

Why the database usually lives outside the cluster (RDS)

Running a database as a StatefulSet in K8s is possible, but it puts the operational burden on you: backups, failover, storage durability, replication, patch management.

In most production setups — and in the capstone project — the database runs on a managed service like AWS RDS, completely outside the K8s cluster. App pods connect to RDS over the network on port 5432 (Postgres) or 3306 (MySQL).

	DB inside K8s (StatefulSet + PV)	Managed RDS (outside cluster)
Who manages backups	You	AWS (automated snapshots)
Who handles failover	You	AWS (Multi-AZ automatic)
Who patches the DB engine	You	AWS
Complexity	High	Low
Cost	Node cost only	RDS instance cost
Data durability	Your EBS + your backup setup	AWS-guaranteed durability
Best for	Learning / cost-sensitive	Production

🇮🇳 Hinglish intuition: App pod = kiraye ka waiter (tera restaurant). RDS = bank locker (bank ki building, bank sambhaalta). Keemti cheez (data) bank mein rakho, apni dukaan mein nahi.

The app pod reads its DB connection string from an environment variable (DB_HOST). The password comes from a Kubernetes Secret (never hardcoded). The pod itself is stateless and disposable. This is the full expression of Golden Thread 2.

12-capstone-url-shortener walks through the exact pod-to-RDS connection, Security Group rules, and Secret wiring.

---

Cluster flavors: kubeadm vs EKS vs k3s

Three ways to get a cluster

	kubeadm	EKS (AWS)	k3s
What it is	Tool to bootstrap a full K8s cluster on your own VMs	AWS-managed K8s (control plane hosted by AWS)	Lightweight K8s distribution (single binary)
Who manages control plane	You	AWS	You (but it's tiny)
RAM requirement	2 GB minimum per node	N/A (AWS manages it)	512 MB workable
Install complexity	Medium (3 playbooks — Ansible in M2)	Low (one eksctl command or Terraform)	Very low (one curl | sh)
Cost	EC2 cost only	EC2 + $0.10/hr per cluster (control plane)	Minimal — fits AWS free-tier t3.micro
Best for	Learning the full stack, capstone	Production on AWS	Free-tier learners, edge, Raspberry Pi
API compatibility	Full K8s	Full K8s	Full K8s (minus some alpha features)
Self-healing control plane	You fix it	AWS fixes it	You fix it (but rarely breaks)

For this module's lab: Use k3s on a single VM or minikube on your laptop. Both expose the full K8s API. Concepts transfer 100% to EKS in production.

For the capstone: kubeadm on three EC2 nodes built by Terraform and configured by Ansible — the full M0→M7 chain.

🇮🇳 Hinglish intuition: kubeadm = ghar khud banao (seekhne best). EKS = flat kiraye pe le lo (ready, managed). k3s = studio apartment (chota, sasta, same kaam karta free-tier pe).

---

Real production example

A URL shortener (the capstone in 12-capstone-url-shortener) running on K8s:

┌────────────────────────────────────────────────────────────┐
│  K8s Cluster (3 nodes — 1 master + 2 workers)              │
│                                                            │
│  Namespace: url-shortener                                  │
│                                                            │
│  ┌──────────────────────────────────────────────────────┐  │
│  │  Deployment: api (replicas: 3)                       │  │
│  │  ┌──────────┐  ┌──────────┐  ┌──────────┐           │  │
│  │  │ api-pod  │  │ api-pod  │  │ api-pod  │           │  │
│  │  │ :8000    │  │ :8000    │  │ :8000    │           │  │
│  │  └────┬─────┘  └────┬─────┘  └────┬─────┘           │  │
│  │       │             │             │                  │  │
│  │  ┌────┴─────────────┴─────────────┴─────┐            │  │
│  │  │  Service: api-svc (NodePort :30080)  │            │  │
│  │  │  selector: app=api                   │            │  │
│  │  └──────────────────────────────────────┘            │  │
│  └──────────────────────────────────────────────────────┘  │
│                                                            │
│                     │  :5432                              │
└─────────────────────┼──────────────────────────────────────┘
                      ▼
              AWS RDS (Postgres)
              outside cluster,
              managed by AWS

What happens when a pod crashes at 3 AM: 1. kubelet on the worker node detects the container has exited. 2. Reports to the control plane. 3. Deployment controller sees: desired=3, current=2. 4. Creates a new pod spec. 5. Scheduler picks a worker node. 6. kubelet on that node pulls the image from ECR and starts the container. 7. Readiness probe passes after ~5 seconds. 8. Service adds the new pod to its endpoint list. 9. Total time: 10–30 seconds. Zero human intervention.

---

Commands, explained

Every command below includes a one-line reason for running it.

# Show all pods in all namespaces (include kube-system to see control-plane pods)
kubectl get pods -A

# Show pods in the current namespace with more detail (node, IP, age)
kubectl get pods -o wide

# Show all your objects at once (Deployments, ReplicaSets, Pods, Services)
kubectl get all

# Apply a YAML file — create or update the object described in it
kubectl apply -f deployment.yaml

# Describe a pod — shows Events, which is where scheduling failures and probe failures appear
kubectl describe pod <pod-name>

# Stream live logs from a pod (add -f to follow, -c to pick a container in multi-container pods)
kubectl logs <pod-name> -f

# Scale a Deployment to 5 replicas without touching the YAML
kubectl scale deployment myapp --replicas=5

# Trigger a rolling restart of all pods in a Deployment (e.g., to pick up a new Secret)
kubectl rollout restart deployment/myapp

# Check the rollout status — shows whether the rolling update completed or stalled
kubectl rollout status deployment/myapp

# Roll back to the previous version
kubectl rollout undo deployment/myapp

# Delete a pod — Deployment will immediately create a replacement (self-healing demo)
kubectl delete pod <pod-name>

# Run a temporary debug container in the cluster (useful for DNS / network testing)
kubectl run debug --image=busybox --rm -it --restart=Never -- sh

# Port-forward a pod's port to your localhost (quick access without a Service)
kubectl port-forward pod/<pod-name> 8080:8000

# Show resource usage across pods (requires metrics-server installed)
kubectl top pods

---

Beginner mistakes vs senior insights

Beginner does	Senior knows
Creates bare pods directly	Always uses a Deployment — bare pods have no desired state, no self-heal
Wonders why pod IP changed	Pod IPs are ephemeral by design; always reach pods via a Service
Confused why kubectl get pods shows nothing	Default namespace only; use -A to see all namespaces
Tries to put two microservices in one pod	Each microservice gets its own Deployment and Pod; sidecar = helper for the same service, not a different service
Skips readiness probe	Pods receive traffic before app is ready → errors during startup; always configure readiness
Uses latest image tag in Deployment	latest is mutable; pin to a git-sha tag so rollbacks are predictable (same principle as M3)
kubectl edit in production with GitOps	With Argo CD selfHeal=true, manual kubectl changes are undone within minutes; always change via Git
Runs DB as a Deployment	DB needs stable identity and persistent disk; use StatefulSet or, better, RDS
Wonders why pod is Pending with free RAM	IP pool exhaustion or 110-pod cap; check kubectl describe pod Events
Treats master as a worker node	Master carries NoSchedule taint; adding app pods there risks destabilizing the control plane

---

Memory shortcuts

Concept	One-line hook
Reconciliation	Chowkidar jo 24/7 ginta — "teen chahiye, do hain, ek aur banao"
Pod	Tiffin 🍱 — ek ya zyada container ek dabba mein, same network
Service	Fixed phone number ☎️ — delivery boys (pods) badalte, number same
Taint	No-Entry board 🚷 — master pe aam pods rok
Toleration	VIP pass — taint ke bawajood andar
Readiness probe	Traffic signal 🚦 — fail = rok, maar nahi
Liveness probe	Pulse check 💓 — fail = maar ke restart
Running vs Ready	Dukaan khuli vs galla set (grahak le sakte ho?)
PersistentVolume	Bahar ka locker 🔒 — pod toot jaaye to locker bacha
Deployment	Stateless cattle 🐄 — disposable, koi bhi pod same kaam
StatefulSet	Stateful pet 🐶 — stable naam, apna locker
nodeSelector / affinity	"Main yahan baithunga" — pod khud node chunta (label se)
k3s vs kubeadm vs EKS	Studio / khud-banaya-ghar / managed flat

---

Summary

Kubernetes solves the problem of running many containers across many machines reliably. Its core idea — declare desired state, let a reconciliation loop maintain it — is the same philosophy as Terraform, Ansible, and Argo CD. You are building a vocabulary, not memorizing separate tools.

The object chain you create: Deployment → ReplicaSet → Pod → Container. You interact with Deployments; K8s manages the rest.

A Service gives pods a stable address. It uses labels and selectors to find pods. Those same labels serve a second purpose: placement via nodeSelector. Know which use you are reading.

Probes separate "running" from "ready." Readiness gates traffic. Liveness restarts stuck processes.

Nodes divide into master (brain, no app pods) and workers (run your pods). Taints enforce this boundary.

For stateful workloads, prefer managed RDS over a StatefulSet in the cluster. Golden Thread 2: state outside → compute disposable.

Cluster flavors: k3s for learning on free-tier, kubeadm for the full self-managed experience, EKS for production AWS.

What is explicitly deferred to 11-M9-advanced-k8s-internals: - Control-plane internals (API server, scheduler, controller-manager, etcd) - kubectl apply 7-step journey - EndpointSlice internals - Rolling update mechanics at the ReplicaSet level - QoS classes (Guaranteed, Burstable, BestEffort) - CoreDNS and cluster DNS - Graceful shutdown and terminationGracePeriodSeconds - HPA formula and scaling behavior - RBAC - Ingress and IngressController - CNI and networking internals

---

Self-check quiz

Pehle memory se jawab do, phir neeche kholo.

1. A pod crashes at 3 AM. No one is awake. What happens, and why?

2. You have a Service with selector: app: api. Your pod has labels: app: API (capital A). Pods are running. Why is the Service sending no traffic to them?

3. What is the difference between Running and Ready in kubectl get pods output? Give a concrete scenario where a pod is Running but not Ready.

4. A teammate ran kubectl scale deployment myapp --replicas=10 directly. You are using Argo CD with selfHeal: true. What happens next?

5. Your pod is stuck in Pending. CPU and RAM on your nodes appear available. Name three other reasons a pod can stay Pending.

6. Why does the master node carry a NoSchedule taint? What breaks if you remove it and schedule app pods on the master?

7. You need to run a Postgres database in K8s. What is wrong with using a Deployment? What should you use instead, and why?

8. A developer asks why they cannot ping pod-ip:8080 from their laptop. The Service is working fine. Explain what ClusterIP means and what they should do instead.

Jawab dekho

1. Deployment controller sees desired=3, current=2 and immediately creates a replacement pod. The reconciliation loop (chowkidar) runs 24/7 — zero human intervention needed.
2. Labels are case-sensitive. app: API ≠ app: api. The Service selector finds no matching pods, so no endpoints are added — traffic goes nowhere.
3. Running = container process is alive. Ready = readiness probe has passed and the pod is eligible for traffic. Scenario: app takes 20 s to connect to the database — pod shows Running but READY 0/1 until the probe passes.
4. Argo CD's selfHeal=true detects the cluster (10 replicas) diverges from Git. Within minutes it reverts the Deployment to match the Git manifest, overriding the manual scale.
5. Three reasons: (a) IP pool exhaustion — each pod needs its own IP from the node's CIDR block; (b) 110-pod hard cap hit; (c) nodeSelector/affinity with no matching node label, or a taint with no matching toleration. Check kubectl describe pod Events for the exact message.
6. Master runs the control plane (API server, etcd, scheduler). If app pods overload it, the control plane crashes — the whole cluster goes dark. NoSchedule taint keeps app pods off the master by design.
7. Deployment pods are interchangeable and stateless — a new pod starts fresh with no prior disk. Postgres needs stable identity and a PersistentVolume that survives pod death. Use StatefulSet+PVC, or better: RDS outside the cluster.
8. ClusterIP is only routable inside the cluster network — not from a laptop. Use kubectl port-forward pod/<name> 8080:8080, expose via NodePort, or use a LoadBalancer.

---

Hands-on lab

✅ Prove it — bash labs/check-m4-k8s.sh

Lab ho gaya? Tick mat lagao — machine se verify karo (Deployment+Service+ConfigMap · live self-heal test). ❌ pe exact fix-hint. → The Doer's Path

Goal: Deploy an app, scale it, watch self-healing, explore system pods.

Prerequisites: k3s, minikube, or kind installed locally. kubectl configured.

Step 1 — Write the Deployment

# deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: hello
  labels:
    app: hello
spec:
  replicas: 2
  selector:
    matchLabels:
      app: hello
  template:
    metadata:
      labels:
        app: hello
    spec:
      containers:
      - name: hello
        image: hashicorp/http-echo:1.0.0   # pinned tag, never :latest (see M3)
        args: ["-text=Hello from K8s"]
        ports:
        - containerPort: 5678
        readinessProbe:
          httpGet:
            path: /
            port: 5678
          initialDelaySeconds: 2
          periodSeconds: 5

# service.yaml
apiVersion: v1
kind: Service
metadata:
  name: hello-svc
spec:
  type: NodePort
  selector:
    app: hello           # matches the pod's label
  ports:
  - port: 80
    targetPort: 5678
    nodePort: 30080      # access via <node-IP>:30080

Step 2 — Apply and verify

# Apply both objects
kubectl apply -f deployment.yaml
kubectl apply -f service.yaml

# Watch pods come up (Ctrl+C to stop)
kubectl get pods -w

# Verify Service selector matches pod label
kubectl describe service hello-svc
kubectl get pods --show-labels

Step 3 — Confirm the app is reachable

# For minikube:
minikube service hello-svc --url

# For k3s on localhost:
curl http://localhost:30080
# Expected: Hello from K8s

Step 4 — Demonstrate self-healing

# List running pods and note the names
kubectl get pods

# Delete one pod — K8s will immediately create a replacement
kubectl delete pod <pod-name-from-above>

# Watch the replacement appear (within seconds)
kubectl get pods -w
# You should see the deleted pod Terminating and a new one ContainerCreating → Running → Ready

Step 5 — Scale the Deployment

# Scale to 4 replicas
kubectl scale deployment hello --replicas=4

# Verify 4 pods are running
kubectl get pods

# Scale back to 2
kubectl scale deployment hello --replicas=2

# Verify 2 pods remain (K8s chose 2 to kill)
kubectl get pods

Step 6 — Explore system pods

# See ALL pods including K8s internals
kubectl get pods -A

# You will see kube-system namespace pods:
# - coredns         (cluster DNS)
# - kube-proxy or kube-router  (network routing)
# - metrics-server  (if installed)
# These are why 'kubectl get pods' (no -A) seems to show nothing on a fresh cluster

Step 7 — Inspect the object chain

# See the Deployment, ReplicaSet, and Pods together
kubectl get all

# Describe the Deployment — shows ReplicaSet name, events, rollout history
kubectl describe deployment hello

# Check the ReplicaSet — shows the exact pod template it manages
kubectl get replicaset
kubectl describe replicaset <rs-name>

Step 8 — Trigger a label mismatch (intentional break)

# Update the Deployment selector to a wrong label to see what happens
kubectl patch deployment hello -p '{"spec":{"selector":{"matchLabels":{"app":"wrong"}}}}'
# This will error: selector is immutable after creation. Good — K8s protects you.

# Instead, edit the Service selector to a wrong value:
kubectl patch service hello-svc -p '{"spec":{"selector":{"app":"wrong"}}}'

# Now try curl — it will hang (no endpoints match)
curl http://localhost:30080

# Check the endpoints to confirm 0 pods are selected
kubectl get endpoints hello-svc

# Fix it:
kubectl patch service hello-svc -p '{"spec":{"selector":{"app":"hello"}}}'
curl http://localhost:30080  # works again

Clean up

kubectl delete -f deployment.yaml
kubectl delete -f service.yaml

✅ Sahi hua to aisa dikhega: kubectl delete pod <name> ke baad kubectl get pods -w mein woh pod turant Terminating dikhta hai aur ek naya pod ContainerCreating → Running → Ready ho jaata hai — poore seconds mein, bina kisi manual command ke; Step 8 mein kubectl patch service hello-svc ke baad kubectl get endpoints hello-svc ek baar <none> dikhata hai (label mismatch), phir patch fix karne par curl http://localhost:30080 wapas "Hello from K8s" return karta hai — yeh Service selector bug live mein pakda.

---

🚨 Ab drill karo — Incident Simulator (14 real prod cases)CrashLoop vs OOMKilled vs ImagePull, readiness vs liveness, selector vs targetPort — jo abhi padha, ab evidence dekh ke khud diagnose karo. Galat chuno to "evidence padho" sabak khulta. ▶ Khelo

Interview questions

1. "What is the difference between a Pod and a Deployment? When would you ever create a bare Pod?" Expected: Deployment owns desired state and self-healing via ReplicaSet. Bare pods are for debugging only — they do not self-heal. In production, always use a Deployment.

2. "A Service is not sending traffic to my pods. Walk me through your debugging steps." Expected: (1) Check kubectl get pods — are pods Running AND Ready? (2) Check kubectl get endpoints <svc> — are there any endpoints? (3) Check Service selector vs pod labels — do they match exactly, including case? (4) Check readiness probe — is it failing?

3. "What does the reconciliation loop do? How is it different from Terraform's behavior?" Expected: K8s reconciliation runs continuously and automatically (thermostat). Terraform is idempotent but only reconciles when you run apply (switch). K8s watches and self-corrects 24/7; Terraform corrects drift only on-demand.

4. "Why can't you run a database as a Deployment in production?" Expected: Deployment pods are interchangeable and ephemeral. A DB needs stable identity (pod-0, pod-1) and a persistent disk that survives pod death. That requires StatefulSet + PersistentVolume. Better: managed RDS — AWS handles backup, failover, patching.

5. "You have 10 nodes with 80% CPU free. A pod is stuck in Pending. What could cause this?" Expected: IP pool exhaustion, 110-pod cap hit, nodeSelector/affinity with no matching node, node taint with no matching toleration, pod requests exceeding what any single node can provide (fragmentation). Check kubectl describe pod Events for the exact reason.

6. "What is the difference between a readiness probe and a liveness probe? If you had to pick only one, which would you pick and why?" Expected: Readiness gates traffic (fail = remove from Service, no kill). Liveness restarts stuck processes (fail = kill and restart). If forced to pick one: readiness — it prevents sending requests to unhealthy pods without the risk of a misconfigured liveness probe causing restart loops.

7. "Your Argo CD deployment shows Synced but Degraded. What does that mean?" Expected: Synced means cluster matches Git (the deployment YAML was applied). Degraded means the pods are not healthy (CrashLoopBackOff, OOMKilled, readiness failing). The deployment happened successfully; the application itself is broken. Check kubectl logs and kubectl describe pod.

---

Production challenge

Scenario: Your team is deploying a 3-tier web application: a React frontend, a Python API, and a Postgres database. You have a 3-node K8s cluster (1 master, 2 workers).

Design the K8s objects you would create. For each service, specify: - Which K8s object type (Deployment or StatefulSet)? - How many replicas and why? - What Service type and why (ClusterIP vs NodePort)? - What probes would you configure? - Where does the database data live?

Then answer: a developer wants to update the API image. What is the exact sequence of events from git push to traffic hitting the new pods? (Assume Argo CD is running with selfHeal enabled.)

Refer to 09-connected-system for the full chain, and 12-capstone-url-shortener for the worked solution.

---

Next: 06-M5 · Sizing & Cost — before you wrap CI, GitOps and observability around this app, learn to size nodes and pods (and why the wrong number = the 3 a.m. exit 137). Objects still feel like disconnected facts? Take the 20-min synthesis detour: 26 · K8s Objects Map.
