28 — Helm in the Real World: Your Two Projects

Ye chapter kis liye: Whiteboard pe tumne boxes banaye — frontend (Service + ConfigMap + Deployment), backend (Service + Secret + StatefulSet) — aur poocha "Helm me ye YAML kaise banti hai?" Answer tumhare hi do repos me pada hai. VANTA-Boutique aur billfree-techops — dono me Helm chart hai, aur dono Helm ke do alag fundamental patterns dikhate hain. Ye chapter unhi ko cheer-phaad ke samjhaata hai.

10-day plan connection: Ye Day 8 (GitOps + Helm) ka real-world extension hai.

Pehli baar Helm? Pehle M7.5 · Helm & Kustomize Primer (25 min — chart/values/release basics + labs), phir ye chapter. Ye chapter maanta hai ki helm template aur values.yaml tumhare liye naye nahi hain.

---

Pehle: whiteboard → Helm ka ek line me sach

Tumne jo box banaya:

┌─── frontend ───┐      ┌─── backend ────┐
│   Service      │      │   Service      │
│   ConfigMap    │      │   Secret       │
│   Deployment   │      │   StatefulSet  │
│     └─ App     │      │     └─ Database│
└────────────────┘      └────────────────┘

Helm in boxes ko banata nahi — ye "kya" hai woh wahi rehta hai. Helm sirf teen kaam karta hai:

1. In YAML ko ek folder (chart) me pack karta hai
2. Values (image, replicas, config) ko ek values.yaml me bahar nikaal deta hai
3. Ek command se poora bundle deploy/upgrade/rollback karta hai

🇮🇳 Yaad rakho: Helm YAML ka structure wahi rakhta — Service, ConfigMap, Deployment, Secret, StatefulSet. Bas unhe template banake, values bahar nikaal ke, ek package bana deta. Kubernetes ko farq nahi padta ki tumne haath se likha ya Helm ne render kiya — dono se same object banta hai.

---

Helm ke do patterns — aur tumhare paas dono hain

Yahi wo cheez hai jo confusion khatam kar deti hai. Helm charts do tarah se organize hote hain:

flowchart TB
  subgraph A["Pattern A · One chart per service-TYPE (reusable)"]
    AC["ONE 'microservice' chart"]:::chart
    AV1["auth-service/values.yaml"]:::vals
    AV2["api-gateway/values.yaml"]:::vals
    AV3["ticket-service/values.yaml"]:::vals
    AC -.->|"+ values"| AV1
    AC -.->|"+ values"| AV2
    AC -.->|"+ values"| AV3
  end
  subgraph B["Pattern B · One umbrella chart, one template per service"]
    BC["ONE 'onlineboutique' chart"]:::chart
    BT1["templates/frontend.yaml"]:::tmpl
    BT2["templates/cartservice.yaml"]:::tmpl
    BT3["templates/paymentservice.yaml"]:::tmpl
    BC --> BT1 & BT2 & BT3
  end
  NOTE1["👉 billfree-techops<br/>uses THIS"]:::note
  NOTE2["👉 VANTA-Boutique<br/>uses THIS"]:::note
  A --- NOTE1
  B --- NOTE2
  classDef chart fill:#e8eaf6,stroke:#283593,color:#1a237e
  classDef vals fill:#fff3e0,stroke:#e65100,color:#bf360c
  classDef tmpl fill:#e0f2f1,stroke:#00897b,color:#004d40
  classDef note fill:#fce4ec,stroke:#880e4f,color:#880e4f

	Pattern A — Reusable chart	Pattern B — Umbrella chart
Kaun	billfree-techops	VANTA-Boutique
Idea	1 chart, N services (values se badalte)	1 chart, har service ka apna template file
Kab best	services ek jaise hain (sab Node/Fastify)	services alag-alag hain (Go, Python, Java, Redis…)
Naya service add	ek values.yaml file → done	ek naya templates/x.yaml likho
DRY?	Bahut (ek hi template sabke liye)	Kam (har service repeat)
Real-world naam	"library / reusable chart"	"monolithic / app-of-services chart"

Dono sahi hain — bas use-case alag. Chalo dono ko andar se dekhte hain.

---

Pattern A — billfree-techops: ek reusable chart, N services

Ye modern best-practice hai jab tumhare saare microservices ek jaise ho (same runtime, same shape). billfree ke 7 services (auth, gateway, ticket, analytics, calllog, report, web) sab Node/Fastify hain → ek hi chart sabko chalata hai.

Folder structure (real)

deploy/
├── charts/
│   └── microservice/              ← ⭐ EK reusable chart (sabke liye)
│       ├── Chart.yaml
│       ├── values.yaml            ← safe defaults (har service inherit karta)
│       └── templates/
│           ├── _helpers.tpl       ← naam + labels ka logic (DRY)
│           ├── deployment.yaml
│           ├── service.yaml
│           ├── hpa.yaml           ← auto-scaling
│           ├── ingress.yaml
│           ├── pdb.yaml           ← PodDisruptionBudget
│           ├── servicemonitor.yaml   ← Prometheus scrape
│           └── prometheusrule.yaml   ← alerts (RED method)
│
├── apps/                          ← per-service VALUES (chart nahi!)
│   ├── auth-service/values.yaml
│   ├── api-gateway/values.yaml
│   ├── ticket-service/values.yaml
│   └── …                          ← har service = sirf ek values file
│
└── envs/
    └── dev/applicationset.yaml    ← ArgoCD: sabhi services loop karke deploy

Mental model: charts/microservice/ = ek cookie-cutter (saancha). apps/<service>/values.yaml = us saanche me kaunsa dough (image, config). Ek saancha, 7 cookies. 🍪

Chart = ek box; values = uska content

Tumhare whiteboard ka frontend box = ek service. billfree me woh ban jaata hai: deploy/apps/web/values.yaml + shared microservice chart. Box ke andar Service + Deployment + (config via envFrom Secret) — sab chart ke templates se aate hain.

Template kaise values se juda hai (real code)

templates/deployment.yaml (chart) me hardcoded kuch nahi — sab .Values se:

# deploy/charts/microservice/templates/deployment.yaml (excerpt)
spec:
  {{- if not .Values.autoscaling.enabled }}
  replicas: {{ .Values.replicaCount }}        # 👈 values se
  {{- end }}
  ...
  containers:
    - name: {{ include "microservice.name" . }}
      image: "{{ .Values.image.repository }}:{{ .Values.image.tag }}"   # 👈 values se
      {{- with .Values.envFrom }}
      envFrom:
        {{- toYaml . | nindent 12 }}           # 👈 Secret yahan inject hota hai
      {{- end }}

Aur auth-service/values.yaml sirf differences deta hai — baaki chart defaults se:

# deploy/apps/auth-service/values.yaml (real)
nameOverride: auth-service
image:
  repository: ghcr.io/grvtech1/billfree-techops/auth-service
  tag: "48b3805d…"
replicaCount: 2
env:
  - name: SERVICE_NAME
    value: auth-service
envFrom:
  - secretRef:
      name: billfree-app-secrets      # 👈 whiteboard ka "Secret" — yahin juda
autoscaling:
  minReplicas: 2
  maxReplicas: 4

🇮🇳 Yehi magic hai: values.yaml sirf jo alag hai wo batata hai (naam, image, secret, scale). Baaki 90% (security context, probes, PDB, service, HPA structure) chart ke defaults se automatically aa jaata. Ek jagah fix karo → saare 7 services ko mil jaata. Yehi DRY hai.

_helpers.tpl — chhupi hui super-power

Ye file repeat hone wala logic ek jagah rakhti hai. Jaise naam aur labels:

# har template isko call karta hai — ek jagah define, sab jagah use
{{- define "microservice.labels" -}}
app.kubernetes.io/name: {{ include "microservice.name" . }}
app.kubernetes.io/instance: {{ .Release.Name }}
app.kubernetes.io/part-of: billfree-techops
{{- end -}}

Deployment, Service, HPA, PDB — sab {{- include "microservice.labels" . }} bulate hain. Labels ka format badalna ho? Ek jagah badlo, sab update. (Restaurant: ek hi "name-badge printer" — sab cooks ke badge same format me.)

ArgoCD ApplicationSet — ek chart se 7 apps

Ye pattern ka taj hai. Ek file me service list, ArgoCD har ek ke liye ek Application bana deta:

# deploy/envs/dev/applicationset.yaml (real, trimmed)
generators:
  - list:
      elements:
        - service: api-gateway
        - service: auth-service
        - service: ticket-service
        # …
template:
  spec:
    sources:
      - path: deploy/charts/microservice        # 👈 same chart har baar
        helm:
          releaseName: "{{.service}}"
          valueFiles:
            - $values/deploy/apps/{{.service}}/values.yaml   # base
            - $values/deploy/envs/dev/values.yaml            # dev overlay (last wins)

Flow ek line me: ArgoCD service-list pe loop → har service ke liye microservice chart lo → us service ki values.yaml + dev overlay lagao → cluster me deploy. 7 services, 1 chart, 0 duplication.

flowchart LR
  AS["ApplicationSet<br/>(service list)"]:::ship
  CH["microservice chart<br/>(one template set)"]:::chart
  V1["auth values"]:::vals
  V2["gateway values"]:::vals
  V3["ticket values"]:::vals
  AS --> CH
  V1 & V2 & V3 -.->|"overlay"| CH
  CH --> K["7 Deployments+Services+HPA+PDB<br/>in the cluster"]:::run
  classDef ship fill:#f3e5f5,stroke:#8e24aa,color:#4a148c
  classDef chart fill:#e8eaf6,stroke:#283593,color:#1a237e
  classDef vals fill:#fff3e0,stroke:#e65100,color:#bf360c
  classDef run fill:#e0f2f1,stroke:#00897b,color:#004d40

---

Pattern B — VANTA-Boutique: ek umbrella chart, template per service

VANTA (Google Online Boutique) ke 12 services alag-alag languages me hain (Go, C#, Python, Java, Node). Ek generic template inhe fit nahi kar sakta — isliye har service ka apna template file, sab ek chart me.

Folder structure (real)

helm-chart/
├── Chart.yaml                      ← name: onlineboutique
├── values.yaml                     ← ⭐ EK bada values file, sab services ke toggle
└── templates/
    ├── _common.yaml                ← shared NetworkPolicy/AuthorizationPolicy
    ├── frontend.yaml               ← frontend ka SA+Deployment+Service (ek file me)
    ├── cartservice.yaml            ← cart ka sab kuch
    ├── paymentservice.yaml
    ├── productcatalogservice.yaml
    ├── recommendationservice.yaml
    ├── shippingservice.yaml
    └── … (har service ka ek file)

Mental model: ek thali jisme har service ek alag katori hai. Ek hi thali (chart), par har dish ka apna container (template).

Ek service template (real)

templates/frontend.yaml me ek if gate se poora service on/off hota hai:

# helm-chart/templates/frontend.yaml (excerpt)
{{- if .Values.frontend.create }}          # 👈 toggle from values
...
apiVersion: apps/v1
kind: Deployment
metadata:
  name: {{ .Values.frontend.name }}         # 👈 values se
spec:
  template:
    spec:
      containers:
        - name: server
          image: {{ .Values.images.repository }}/{{ .Values.frontend.name }}:{{ .Values.images.tag | default .Chart.AppVersion }}
          securityContext:
            readOnlyRootFilesystem: true
            capabilities:
              drop: [ALL]
{{- end }}

Aur values.yaml me ek jagah se saare services control:

# helm-chart/values.yaml (shape)
images:
  repository: us-central1-docker.pkg.dev/google-samples/microservices-demo
  tag: ""
frontend:
  create: true          # 👈 chahiye to true, nahi to false
  name: frontend
cartservice:
  create: true
  name: cartservice
securityContext:
  enable: true
networkPolicies:
  create: false         # ek switch → sab services ki policy on/off

🇮🇳 Difference dekha? billfree me ek template, N values files. VANTA me N templates, ek values file. Dono me values hi asli control hai — bas organize alag.

---

Side-by-side — kab kaunsa pattern?

flowchart TD
  Q{"Tumhare services<br/>ek jaise hain?"}:::q
  Q -->|"Haan — sab same runtime<br/>(sab Node, sab shape)"| A["Pattern A<br/>ONE reusable chart<br/>+ per-service values<br/><br/>👉 billfree style"]:::a
  Q -->|"Nahi — alag languages,<br/>alag zaroorat"| B["Pattern B<br/>ONE umbrella chart<br/>+ template per service<br/><br/>👉 VANTA style"]:::b
  classDef q fill:#fff9c4,stroke:#f9a825,color:#4a3800
  classDef a fill:#e8eaf6,stroke:#283593,color:#1a237e
  classDef b fill:#e0f2f1,stroke:#00897b,color:#004d40

Sawaal	Pattern A (billfree)	Pattern B (VANTA)
Services same shape?	✅ zaroori	❌ zaroorat nahi
Naya service	1 values file	1 template file
Ek change sabme	1 jagah (chart)	har template me
Learning curve	thoda zyada (helpers, ApplicationSet)	seedha (dekho aur samjho)
Best for	homogeneous microservices	fixed heterogeneous set
Scale	50 services? easy	50 templates? painful

Senior judgement: naya greenfield microservices platform bana rahe ho jahan services ek jaise honge → Pattern A. Ek fixed demo/product jisme services bahut alag hain → Pattern B theek hai.

---

Hands-on — apne hi charts render karke dekho

Deploy karne se pehle render karke dekho ki actual YAML kya banega (kuch break nahi hota — sirf print):

# ── billfree (Pattern A): auth-service ke liye render ──
cd billfree-techops
helm template auth-service deploy/charts/microservice \
  -f deploy/apps/auth-service/values.yaml
# → poori Deployment + Service + HPA + PDB + ServiceMonitor + PrometheusRule dikhegi

# ── VANTA (Pattern B): poora boutique render ──
cd VANTA-Boutique/helm-chart
helm template onlineboutique . | head -60
# → saare 12 services ke objects

# ── lint (galti pakdo deploy se pehle) ──
helm lint deploy/charts/microservice

# ── actually deploy (agar cluster hai) ──
helm install auth-service deploy/charts/microservice \
  -f deploy/apps/auth-service/values.yaml -n billfree-dev --create-namespace

# ── update (nayi image tag) ──
helm upgrade auth-service deploy/charts/microservice \
  -f deploy/apps/auth-service/values.yaml --set image.tag=NEW_SHA

# ── kuch toota? ek second me wapas ──
helm rollback auth-service 1

# ── kya deployed hai ──
helm list -n billfree-dev

💡 helm template = tumhara best dost. Deploy se pehle hamesha render karke dekho — "values sahi jagah gaye?" YAML aankhon se verify karo. Confusion 90% yahin khatam ho jaati hai.

---

🧪 Hands-on Lab — Helm templating, andar se

Ye lab tumhare asli billfree chart pe chalta hai. Har command copy-paste karke output apni aankhon se dekho. Padhna nahi — karna hai. Har step ke saath "kya hua aur kyun" likha hai.

Setup: helm version (koi bhi v3/v4 chalega) + cd billfree-techops. Cluster ki zaroorat nahi — helm template sab local render karta hai.

Lab 0 — templating hai kya? (30 second me core)

Template ({{ }} wali file) + values (settings) → Helm render → plain Kubernetes YAML. helm template cluster ko chhuata nahi — sirf print karta. "Deploy se pehle kya banega" dekhne ka safe microscope.

Ek hi cheez ka BEFORE (template) vs AFTER (rendered):

# BEFORE — templates/service.yaml (jaisa likha hai)
spec:
  type: {{ .Values.service.type }}
  ports:
    - name: http
      port: {{ .Values.service.port }}

# AFTER — helm template ... --show-only templates/service.yaml
spec:
  type: ClusterIP        # ← .Values.service.type bhar gaya
  ports:
    - name: http
      port: 80           # ← .Values.service.port bhar gaya

Bas yehi templating hai. {{ ... }} = "yahan value bharo". Baaki sab isi ka detail hai.

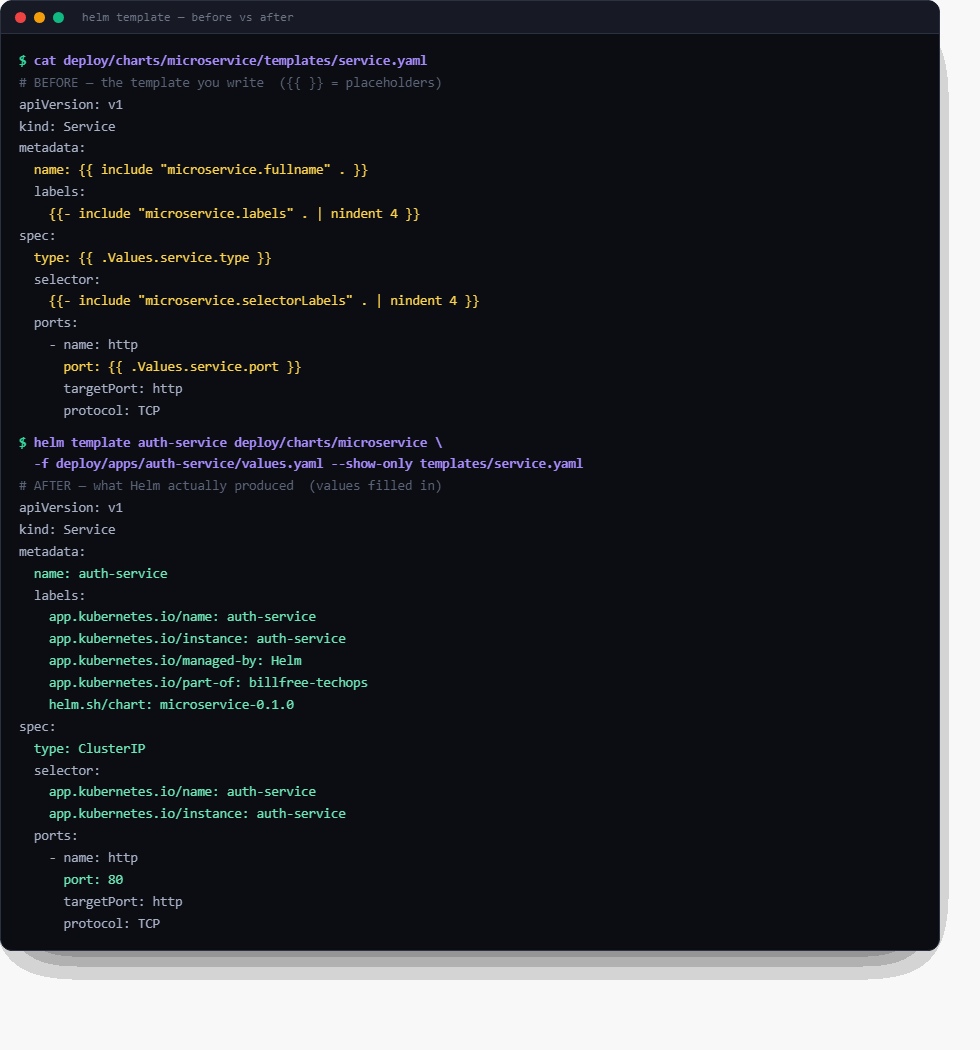

☝️ Ye asli output hai — tumhare deploy/charts/microservice chart pe chalaya gaya. Upar template (peela {{ }}), neeche Helm ka banaya hua asli YAML (hara). Yehi ek tasveer poora Helm samjha deti hai.

Khud chalao:

helm template auth-service deploy/charts/microservice \
  -f deploy/apps/auth-service/values.yaml --show-only templates/service.yaml

---

Lab 1 — Helm ke 4 "magic objects"

Har template ke andar ye 4 built-in objects milte hain. Inhi se sab value aati hai:

Object	Kahan se	Example	Render
.Values	tumhari values.yaml (+ -f / --set)	{{ .Values.image.tag }}	48b3805d…
.Release	helm install <NAME> -n <NS>	{{ .Release.Name }} · {{ .Release.Namespace }}	auth-service · billfree-dev
.Chart	Chart.yaml	{{ .Chart.Name }}-{{ .Chart.Version }}	microservice-0.1.0
.Capabilities	cluster ki API versions	{{ .Capabilities.KubeVersion }}	v1.29

# .Release.Name badal ke dekho — sab jagah naam badal jaata
helm template MY-TEST-NAME deploy/charts/microservice \
  -f deploy/apps/auth-service/values.yaml --show-only templates/service.yaml | grep name:
# → name: MY-TEST-NAME   (kyunki fullname = .Release.Name)

🇮🇳 Yaad rakho: 90% waqt sirf .Values use hoga. .Release/.Chart naam aur labels ke liye.

---

Lab 2 — pipes aur functions (| = "aage bhejo")

Template me | (pipe) matlab "is value ko is function me daalo" — bilkul Linux pipe jaisa. Ye tumhare chart me actually use ho rahe hain:

Syntax	Kaam	Example
{{ .Values.x \| default "abc" }}	value na ho to fallback	tag \| default .Chart.AppVersion
{{ .Values.x \| quote }}	" " lagata (safe string)	host: "api.billfree.example"
{{ .Values.x \| upper }}	UPPERCASE	—
{{ include "..." . \| nindent 4 }}	block ko 4-space indent	labels align karna
{{ toYaml .Values.resources \| nindent 12 }}	object ko YAML me badalna	resources block
{{ 0.05 \| float64 \| mulf 100 }}	maths (5% → "5")	alert thresholds

nindent sabse zyada confuse karta — ye newline + indent hai. YAML me indentation galat = poora break. nindent 4 bolta "nayi line pe jaake 4 space indent karo":

# resources block dekho — toYaml + nindent se banta
helm template auth-service deploy/charts/microservice \
  -f deploy/apps/auth-service/values.yaml --show-only templates/deployment.yaml \
  | grep -A6 "resources:"

⚠️ indent vs nindent: nindent pehle ek newline daalta phir indent; indent sirf indent. Galat choose karo → mapping values are not allowed here error. Confuse ho? nindent use karo (99% cases).

---

Lab 3 — if = on/off switch (sabse powerful)

Ek value se poora object aa/jaa sakta hai. Tumhare chart ka autoscaling isi ka best example hai. Live dekho:

# ── autoscaling ON (default) ──
# deployment me 'replicas' NAHI hota (HPA sambhalega):
helm template auth-service deploy/charts/microservice \
  -f deploy/apps/auth-service/values.yaml \
  --show-only templates/deployment.yaml | grep -c "replicas:"      # → 0

# HPA object BANTA hai:
helm template auth-service deploy/charts/microservice \
  -f deploy/apps/auth-service/values.yaml \
  --show-only templates/hpa.yaml | grep kind:                      # → HorizontalPodAutoscaler

# ── autoscaling OFF (--set se) ──
# ab 'replicas' AA jaata:
helm template auth-service deploy/charts/microservice \
  -f deploy/apps/auth-service/values.yaml \
  --set autoscaling.enabled=false \
  --show-only templates/deployment.yaml | grep "replicas:"         # → replicas: 2

# HPA GAYAB (khaali render → error normal hai):
helm template auth-service deploy/charts/microservice \
  -f deploy/apps/auth-service/values.yaml \
  --set autoscaling.enabled=false \
  --show-only templates/hpa.yaml
# → Error: could not find template ... hpa.yaml  ← ye SAHI hai (HPA bana hi nahi)

Result table:

Setting	replicas: deployment me?	HPA object?
autoscaling.enabled: true	❌ nahi	✅ banaa
autoscaling.enabled: false	✅ replicas: 2	❌ gायab

Iske peeche code (deployment.yaml):

{{- if not .Values.autoscaling.enabled }}
replicas: {{ .Values.replicaCount }}     # sirf jab autoscaling OFF ho
{{- end }}

Aur poori hpa.yaml {{- if .Values.autoscaling.enabled }} … {{- end }} me lipti hai — off ho to kuch render hi nahi.

🇮🇳 Aha moment: ek value (autoscaling.enabled) → do objects ka behaviour badla. Yehi Helm ki asli taakat hai — logic YAML me daal do.

{{- aur -}} ka dash kya hai? Ye whitespace chatta hai — extra khaali lines hata deta taaki rendered YAML saaf rahe. {{- if }} = "is line se pehle ka whitespace kha jao".

---

Lab 4 — with aur range (block + loop)

with = "agar ye value hai to hi block likho" (aur . ko us par point kar do):

# deployment.yaml — env sirf tab jab values me ho
{{- with .Values.env }}
env:
  {{- toYaml . | nindent 12 }}      # yahan '.' = .Values.env
{{- end }}

# auth-service ke env vars dekho (with block se aaye)
helm template auth-service deploy/charts/microservice \
  -f deploy/apps/auth-service/values.yaml \
  --show-only templates/deployment.yaml | grep -A4 "env:"

range = loop (list/map pe ghoomta). Agar tum ports ki list se multiple port banao:

ports:
{{- range .Values.ports }}
  - port: {{ .port }}
    name: {{ .name }}
{{- end }}

🇮🇳 with = single value ka "agar hai to", range = list pe loop. Dono ke andar . ka matlab badal jaata (context shift). Confuse ho to bahar ka context $ se paao: $.Values.x.

---

Lab 5 — _helpers.tpl — DRY ka jaadu (define + include)

Tumne output me dekha — ek include se 5 labels aa gaye. Ye _helpers.tpl se hota hai. _ se shuru file render nahi hoti (koi object nahi banti) — sirf reusable blocks rakhti hai.

# _helpers.tpl — ek baar DEFINE karo
{{- define "microservice.labels" -}}
app.kubernetes.io/name: {{ include "microservice.name" . }}
app.kubernetes.io/instance: {{ .Release.Name }}
app.kubernetes.io/part-of: billfree-techops
{{- end -}}

# har template me INCLUDE karo (define ko bulao)
metadata:
  labels:
    {{- include "microservice.labels" . | nindent 4 }}

. jo include ke aage hai = poora context pass karo (taaki block ke andar .Values/.Release mile). Bhool gaye to andar sab khaali aayega — common bug.

# same include, 3 alag templates me — sab jagah same labels
for t in service deployment hpa; do
  echo "== $t =="
  helm template auth-service deploy/charts/microservice \
    -f deploy/apps/auth-service/values.yaml \
    --show-only templates/$t.yaml | grep "part-of:"
done
# → teeno me: app.kubernetes.io/part-of: billfree-techops

🇮🇳 Restaurant: _helpers.tpl = ek hi "badge-printer". Sab cooks ke name-badge same format me. Format badalna? Ek jagah (define), sab jagah update. Yehi DRY hai.

include vs template: dono block bulaate, par include ka output pipe (| nindent) ho sakta — isliye Helm me hamesha include use hota, template nahi.

---

Lab 6 — helm template ke saare useful flags

# poora chart render
helm template auth-service deploy/charts/microservice -f VALUES.yaml

# sirf ek file (bade output ko filter)
  --show-only templates/deployment.yaml

# command se value override (file chhue bina) — nested = dot
  --set image.tag=v2-hotfix
  --set autoscaling.enabled=false
  --set-string replicaCount=3       # force string (numbers ke liye)

# multiple values files — BAAD wali JEETTI hai (overlay pattern)
  -f base.yaml -f dev.yaml          # dev, base ko override karta

# computed values + poora error context
  --debug

# rendered YAML file me save → kubectl ko de do (Helm ke bina bhi chalta)
helm template auth-service deploy/charts/microservice -f VALUES.yaml > out.yaml
kubectl apply --dry-run=client -f out.yaml    # K8s se bhi validate

# kaunse objects bane? (quick sanity)
helm template ... | grep "kind:"

Values precedence (kaun jeetta) — neeche wala upar ko harata:

chart ka values.yaml   (sabse kamzor — defaults)
      ↓
-f my-values.yaml
      ↓
-f overlay.yaml        (baad wali -f)
      ↓
--set key=value        (sabse takatwar — command line)

# precedence live: values me tag=48b3…, --set se override
helm template auth-service deploy/charts/microservice \
  -f deploy/apps/auth-service/values.yaml \
  --set image.tag=WINS \
  --show-only templates/deployment.yaml | grep image:
# → image: "...:WINS"   (--set ne file ko haraaya)

---

Lab 7 — debugging aur common errors (ye interview me poochte hain)

Error	Kya galat	Fix
mapping values are not allowed here	indent galat (aksar indent vs nindent)	nindent use karo; helm template se dekho
nil pointer evaluating interface	value hi nahi hai (.Values.foo.bar jab foo khaali)	{{ .Values.foo.bar \| default "x" }} ya with
could not find template x.yaml	woh file if false hone se khaali render hui	normal — object off hai
YAML parse error	rendered indentation toota	helm template > out.yaml → aankh se dekho
wrong type for value	number ko string chahiye tha	--set-string ya \| quote

Debug ki 3 super-techniques:

# 1. --debug: error ke saath computed values dikhata
helm template auth-service deploy/charts/microservice -f VALUES.yaml --debug

# 2. render karke file me → aankhon se YAML verify
helm template ... > /tmp/out.yaml && less /tmp/out.yaml

# 3. lint: deploy se pehle chart ki galtiyan pakdo
helm lint deploy/charts/microservice

# abhi apne chart pe lint chalao
helm lint deploy/charts/microservice
# → "1 chart(s) linted, 0 chart(s) failed"  = clean

---

Lab 8 — template vs install vs upgrade (kab kya)

Command	Kya karta	Cluster chahiye?	Kab
helm template	render → print	❌	verify / CI / debug
helm lint	chart me galti pakde	❌	commit se pehle
helm install <name>	render + apply + track	✅	pehli baar deploy
helm upgrade <name>	naye values se update	✅	image/config change
helm rollback <name> N	version N pe wapas	✅	deploy toota
helm list	kya-kya deployed hai	✅	audit

🇮🇳 Golden habit: template → dekho → lint → install/upgrade. Kabhi andha install mat karo. Production me to ArgoCD ye khud karta (Git me change → render → apply).

---

🎯 Lab checkpoint — bina dekhe bolo (recall drill)

1. helm template cluster ko chhuata hai? (Nahi — sirf print)
2. {{ .Values.image.tag }} value kahan se? (values.yaml / -f / --set)
3. Ek chart se 2 alag services kaise? (2 alag values files)
4. {{- if }} kya karta? (object/line on-off switch)
5. nindent 4 kya? (newline + 4-space indent, YAML valid rakhne ko)
6. _helpers.tpl render hoti? (Nahi — _ file sirf define rakhti)
7. include "x" . me aakhri . kyun? (context pass — warna andar values khaali)
8. -f base.yaml -f dev.yaml --set k=v — kaun jeetta? (--set > dev > base)
9. with aur range ka farq? (with = single "agar hai to"; range = list loop)
10. Deploy se pehle 3 verify commands? (helm template, helm lint, kubectl apply --dry-run)

Pass = 8/10 bina dekhe. Ho gaya? Tum ab kisi bhi chart ko render karke, verify karke, confidently deploy kar sakte ho. 💪

---

The values → template → cluster flow (dono patterns ka core)

Chahe A ho ya B — asli mental model ye hai:

flowchart LR
  V["values.yaml<br/>(kya badalna hai)"]:::vals
  T["templates/*.yaml<br/>({{ }} placeholders)"]:::tmpl
  R["helm render<br/>(values bharo)"]:::proc
  Y["plain K8s YAML<br/>(rendered)"]:::yaml
  K["kubectl apply<br/>(Helm/ArgoCD karta)"]:::proc
  C["Running objects<br/>in cluster"]:::run
  V --> R
  T --> R
  R --> Y --> K --> C
  classDef vals fill:#fff3e0,stroke:#e65100,color:#bf360c
  classDef tmpl fill:#e0f2f1,stroke:#00897b,color:#004d40
  classDef proc fill:#ede7f6,stroke:#5e35b1,color:#311b92
  classDef yaml fill:#e3f2fd,stroke:#1565c0,color:#0d47a1
  classDef run fill:#e8f5e9,stroke:#2e7d32,color:#1b5e20

Kubernetes ko Helm ka pata bhi nahi. Helm ka kaam sirf values + templates → plain YAML render karna hai. Uske baad wahi purana kubectl apply. Isliye tumhara whiteboard box (Service/ConfigMap/Deployment/Secret/StatefulSet) bilkul waise ka waisa cluster me banta — Helm sirf usse likhne ka smart tareeka hai.

---

Whiteboard mapping — final connection

Tumhara box, dono patterns me:

Whiteboard box	billfree (Pattern A)	VANTA (Pattern B)
frontend → Deployment	microservice/templates/deployment.yaml + apps/web/values.yaml	templates/frontend.yaml
frontend → Service	microservice/templates/service.yaml	templates/frontend.yaml (same file)
ConfigMap	envFrom / env in values	per-service template me env
backend → Secret	envFrom: secretRef: billfree-app-secrets	Google Secret Manager / values
backend → StatefulSet + DB	in-cluster Postgres StatefulSet — deploy/platform/postgres.yaml (replicas:1, PVC 5Gi)	cartservice → Redis; catalog data

🇮🇳 Note (real): billfree jaan-boojh ke self-managed in-cluster Postgres StatefulSet chalata hai (deploy/platform/postgres.yaml — serviceName: postgres, volumeClaimTemplates 5Gi, postgres:16-alpine) — ye skill showcase hai (StatefulSet + PVC + migrate Job dikhane ke liye). File ka comment tak kehta "for a heavier-duty setup, swap in the CloudNativePG operator".

Yehi senior call hai — trade-off samjho:

	Self-managed (billfree)	Managed (RDS/Cloud SQL)
Control	poora (version, tuning, extensions)	seemित
Zimmedari	tum — backup/failover/patch khud	AWS sambhalta
Cost	sirf compute+disk	premium
Kab	learning/showcase, full control, cost-sensitive	zyadatar prod (kam overhead)

Zyada real-world prod mein managed choose hota (ops-bojh kam). billfree deliberately ulta karta — StatefulSet mastery dikhane ko. Dono valid; jaante-boojhte choose karo.

---

🎓 Advanced Helm — the 4 things that make you dangerous

Ab tak tumne apna chart banaya, render kiya, deploy kiya. Ye section woh 4 cheezein deta hai jo Helm ko sirf "template tool" se ek package ecosystem bana deti hain — aur jo interview + real production mein daily aati hain.

Mental model shift: Ab tak Helm = "tumhari YAML likhne ka smart tareeka". Aage Helm = npm/apt for Kubernetes — doosron ke charts install karo, charts ko ek doosre pe depend karao, aur deploy ke lifecycle mein hook lagao.

---

1 · Chart repositories — helm install nginx (npm/apt jaisa)

Analogy: Ab tak tumne ghar pe khaana banaya (apna chart). Chart repo = Swiggy — koi aur ne bana ke rakha hai, tum bas order karo. Postgres, Prometheus, nginx-ingress, cert-manager — inhe khud likhne ki zaroorat nahi, koi expert ne already production-grade chart bana rakha hai.

Mental model: Chart repo = app store for Kubernetes. helm repo add = ek store connect karo. helm install = wahan se ek app install karo.

WHY: Redis/Prometheus ka poora chart khud likhna = pahiya dobara banana. Community ka battle-tested chart use karo, sirf values se customize.

# 1. Ek repo (app store) add karo
helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
helm repo add bitnami https://charts.bitnami.com/bitnami
helm repo update                          # latest list kheencho

# 2. Dhoondo kya available hai
helm search repo postgres                 # bitnami/postgresql milega
helm search repo prometheus

# 3. Install karo — apni values ke saath
helm install my-db bitnami/postgresql \
  --set auth.database=billfree \
  -n data --create-namespace

# 4. Install se pehle unke defaults dekho (hamesha!)
helm show values bitnami/postgresql | head -40
helm show readme bitnami/postgresql       # docs

billfree connection: Jab tumne monitoring setup ki thi — helm install kps prometheus-community/kube-prometheus-stack — woh exactly ye tha. Prometheus + Grafana + Alertmanager, sab ek community chart se. Tumne ek line likhe bina poora monitoring stack khada kar diya.

🇮🇳 Yaad rakho: Apna app = apna chart likho. Infra pieces (DB, monitoring, ingress) = community chart install karo, khud mat likho. helm repo add → helm search → helm show values → helm install.

---

2 · Chart dependencies (subcharts) — chart ke andar chart

Analogy: Tumhari app ki chart ek thali hai. Par app ko Postgres bhi chahiye. Kya Postgres ki poori YAML apni chart mein copy karo? Nahi — thali mein ek ready-made katori (Postgres subchart) rakh do. Woh katori kisi aur ne banayi, tum bas apni thali mein include kar lo.

Mental model: Dependencies = "mera chart in charts pe depend karta hai" — jaise package.json mein dependencies. Ek helm install parent + saare subcharts ko ek saath deploy karta.

WHY: App + uska DB + uska cache ek saath deploy karne hon, versioned bundle ke roop mein. Har cheez alag manage karne ke bajaye ek chart, sab andar.

# Chart.yaml — dependencies declare karo
apiVersion: v2
name: my-app
version: 1.0.0
dependencies:
  - name: postgresql              # bitnami ka subchart
    version: "15.x.x"
    repository: https://charts.bitnami.com/bitnami
    condition: postgresql.enabled  # values se on/off kar sakte
  - name: redis
    version: "18.x.x"
    repository: https://charts.bitnami.com/bitnami

helm dependency update            # subcharts download → charts/ folder mein
helm dependency list              # kya-kya depend karta
helm install my-app .             # parent + postgres + redis — sab ek saath

Parent ki values.yaml se subchart ko configure karo (naam se namespaced):

# my-app ki values.yaml
postgresql:                       # 👈 subchart ka naam = key
  auth:
    database: billfree
  primary:
    persistence:
      size: 20Gi
redis:
  architecture: standalone

Senior nuance (interview gold): Subchart tab jab woh cheez is app ke saath jeeti-marti ho (app ka apna DB). Agar DB ko multiple apps share karti hain, ya uska lifecycle alag hai — usse alag rakho (billfree ka Postgres alag platform app mein hai, subchart nahi). "Depend karta hai" ≠ "andar hona chahiye." Shared/independent = alag; owned/co-lifecycle = subchart.

🇮🇳 Yaad rakho: Subchart = "chart ke andar chart" (thali mein katori). Chart.yaml mein dependencies: → helm dependency update → ek helm install sab deploy kare. Parent values se subchartname: key se configure.

---

3 · Helm hooks — deploy ke lifecycle mein sahi waqt pe kaam

Analogy: Restaurant mein grand opening se pehle kitchen saaf karni hai, aur opening ke baad feedback lena hai. Ye kaam khud dish banane se alag hain — inhe khaas waqt pe karna hai. Helm hooks = "deploy ke pehle/baad ye extra kaam chalao".

Mental model: Normal manifests = "ye cheezein cluster mein honi chahiye". Hooks = "deploy ke is lamhe pe ye kaam ek baar chalao" — DB migration, backup, cleanup.

WHY: Kuch kaam deploy ke around hote hain, deploy ka hissa nahi: nayi version deploy se pehle DB migrate karo; upgrade se pehle backup lo; delete pe cleanup karo. Timing matter karti hai.

# templates/migrate-job.yaml — ek Job, hook annotation ke saath
apiVersion: batch/v1
kind: Job
metadata:
  name: db-migrate
  annotations:
    "helm.sh/hook": pre-upgrade,pre-install       # 👈 kab chale
    "helm.sh/hook-weight": "-5"                    # order (chhota pehle)
    "helm.sh/hook-delete-policy": before-hook-creation  # purana Job hatao
spec:
  template:
    spec:
      restartPolicy: Never
      containers:
        - name: migrate
          image: my-app/migrate:v2
          command: ["npm","run","migrate"]

5 common hooks (timing):

Hook	Kab chalta	Use
pre-install	pehli install se pehle	initial DB setup
pre-upgrade	har upgrade se pehle	DB migration (sabse common)
post-upgrade	upgrade ke baad	cache warm, smoke test
pre-delete	uninstall se pehle	data backup
post-delete	uninstall ke baad	external cleanup

billfree connection (bilkul real): Tumhara deploy/platform/migrate-job.yaml exactly ye pattern hai — bas ArgoCD ke saath. Woh argocd.argoproj.io/hook: PostSync use karta (Helm ka post-install/post-upgrade ka ArgoCD-equivalent). Concept identical hai: "migration ko deploy ke around, sahi timing pe, ek baar chalao." Helm mein helm.sh/hook, ArgoCD mein argocd.argoproj.io/hook.

⚠️ Interview trap: Hooks normal reconcile ke bahar chalte hain — ArgoCD/Helm inhe alag treat karta. Aur hook-delete-policy na ho to purane hook Jobs jam ho jaate. Aur order hook-weight se (chhota number pehle).

🇮🇳 Yaad rakho: Hook = "deploy ke is lamhe pe ye kaam ek baar chalao" (na ki "ye hamesha chalti rahe"). Migration = pre-upgrade. Backup = pre-delete. billfree ka migrate Job isi ka real example hai.

---

4 · helm test + helm package — quality aur publishing

Analogy: Dish bana li — ab chakhh ke dekho theek bani ya nahi (helm test), phir dabbe mein pack karke shelf pe rakho taaki doosre order kar sakein (helm package).

helm test — chart ke andar ek test pod jo deploy ke baad verify kare "sach mein kaam kar raha?":

# templates/tests/connection-test.yaml
apiVersion: v1
kind: Pod
metadata:
  name: "{{ .Release.Name }}-test"
  annotations:
    "helm.sh/hook": test          # 👈 test hook
spec:
  restartPolicy: Never
  containers:
    - name: test
      image: busybox
      command: ['wget','-qO-','http://{{ .Release.Name }}-svc:80/health']

helm install my-app .
helm test my-app          # test pod chalao → pass/fail batata

helm package — chart ko ek versioned .tgz mein pack karo (publish/share ke liye):

helm package ./my-app                    # → my-app-1.0.0.tgz (immutable artifact)
helm push my-app-1.0.0.tgz oci://registry.example.com/charts   # OCI registry pe
# ab koi bhi: helm install x oci://registry.example.com/charts/my-app --version 1.0.0

🇮🇳 Yaad rakho: helm lint = syntax check (deploy se pehle). helm test = runtime check (deploy ke baad sach mein chala?). helm package = versioned .tgz banao taaki chart bhi image ki tarah immutable + shareable ho.

---

The complete Helm lifecycle — sab ek saath

flowchart LR
  DEV["✍️ Author\nchart likho + values"]:::a
  DEP["📦 Dependencies\nhelm dependency update"]:::b
  LINT["🔍 helm lint\nsyntax"]:::c
  TMPL["👁️ helm template\nrender + verify"]:::c
  INST["🚀 helm install/upgrade\n+ hooks (pre/post)"]:::d
  TEST["✅ helm test\nruntime check"]:::e
  PKG["📤 helm package + push\nversioned .tgz → registry"]:::f
  DEV --> DEP --> LINT --> TMPL --> INST --> TEST --> PKG
  classDef a fill:#e8f5e9,stroke:#2e7d32,color:#1b5e20
  classDef b fill:#fff3e0,stroke:#e65100,color:#bf360c
  classDef c fill:#e3f2fd,stroke:#1565c0,color:#0d47a1
  classDef d fill:#f3e5f5,stroke:#6a1b9a,color:#4a148c
  classDef e fill:#e0f2f1,stroke:#00897b,color:#004d40
  classDef f fill:#ede7f6,stroke:#5e35b1,color:#311b92

---

🎯 Advanced Helm recall drill

1. Public Postgres chart install karne ke 4 commands? (repo add → repo update → show values → install)
2. Subchart kya hai, Chart.yaml mein kaise? (chart ke andar chart; dependencies:)
3. Subchart kab, kab alag rakhe? (owned/co-lifecycle = subchart; shared/independent = alag)
4. DB migration deploy se pehle chalane ka hook? (pre-upgrade)
5. Hook order kaise control karo? (hook-weight)
6. helm lint vs helm test? (syntax before vs runtime after)
7. helm package kya deta? (versioned immutable .tgz)
8. billfree ka migrate Job kis Helm concept ka real example? (hook — ArgoCD PostSync = Helm post-install)

Pass = 6/8. Ye aa gaya → tum Helm ka poora ecosystem jaante ho, sirf templating nahi. 💪

---

20-second recall

HELM = YAML ka structure wahi, bas: template banao + values bahar + ek package.
2 PATTERNS:
  A) ONE reusable chart + N values files   → billfree (services same shape)
  B) ONE umbrella chart + template/service → VANTA  (services alag)
CORE FLOW: values + templates → helm render → plain YAML → kubectl apply → cluster
VERIFY: `helm template` se render karke dekho (deploy se pehle).
K8s ko Helm ka pata nahi — object wahi banta jaise haath se likha ho.

ADVANCED (Helm = npm/apt for K8s):
  REPOS   : helm repo add → search → show values → install (community charts)
  SUBCHART: Chart.yaml dependencies: → chart ke andar chart (owned = subchart)
  HOOKS   : pre-upgrade (migration) · pre-delete (backup) — deploy ke around
  QUALITY : lint (syntax before) · test (runtime after) · package (.tgz immutable)

🇮🇳 Ek line: Helm tumhare Service/ConfigMap/Deployment/Secret/StatefulSet ko banata nahi — sirf unhe template + values + package me smart tareeke se likhta hai, taaki ek chart se har environment aur har service ban jaye. billfree "ek saancha, N cookies"; VANTA "ek thali, N katori". 😊

---

Connected: 10-Day Plan · Day 8 (Helm) · K8s Objects Map · The Connected System · M7 GitOps
